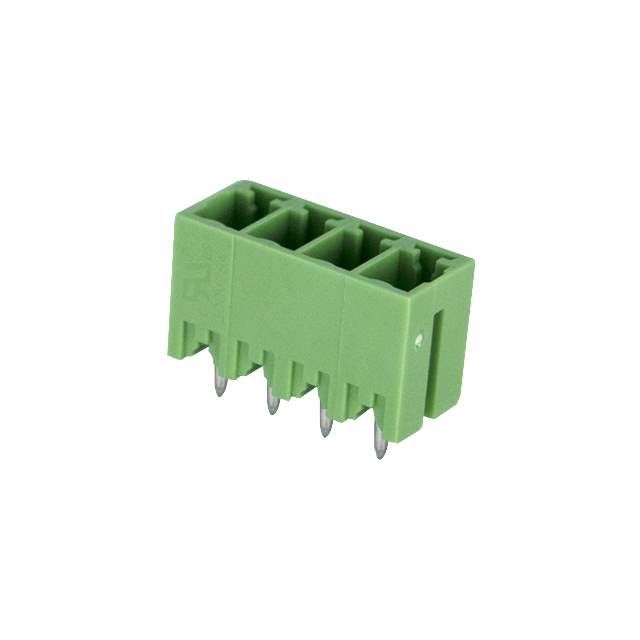

Same model may have multiple batches, images only for reference.

ECH381V-04P

Name: ECH381V-04P
Brand: Dinkle Corporation
SKU: 1381981
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECH381V-04P
Manufacturer	Dinkle Corporation
Catalog	Headers, Plugs and Sockets
Description	TERM BLK 4POS 3.81MM HDR / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Datasheet	ECH381V-04P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr	Dinkle Corporation
Series	ECH381V
Package	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	Vertical
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	14A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	300 V
Color	Green
Temperature Range - Operating	-40°C ~ 120°C
Contact Mating Finish	Tin
Features	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8536.90.4000
Standard Package	200 pcs
Win Source Part Number	1381981-ECH381V-04P
Ultra Librarian 3D Model	Ultra Librarian ECH381V-04P CAD Model

Description

The ECH381V-04P is a header terminal block from Dinkle Corporation. It is a male pin header with four positions and four positions per level.

Positions: 4
Positions per Level: 4
Header Type: Shrouded
Pitch: 0.150" (3.81mm)
Orientation: Vertical
Termination Style: Solder
Current Rating (IEC): 14A
Current Rating (UL): 8A
Voltage Rating (IEC): 320V
Voltage Rating (UL): 300V
Color: Green
Contact Finish: Tin
Mounting Type: Through-Hole
Temperature Range: -40°C to 120°C
REACH: Unaffected
HTSUS: 8536.90.4000
Package: Bulk
Package Quantity: 200 pcs
MSL: 1 (Unlimited)
