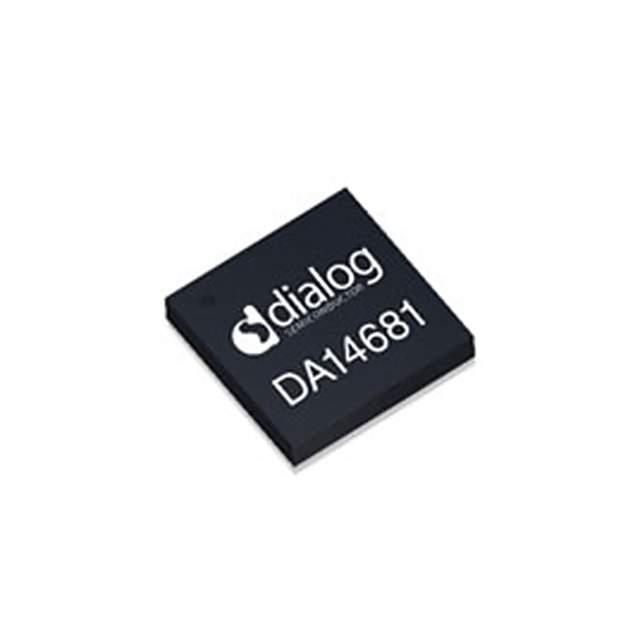

DA14681-01000U22

Part No DA14681-01000U22
Manufacturer Dialog Semiconductor GmbH
Catalog RF Transceiver ICs
Description IC RX TXRX+MCU BLUETOOTH 53WLCSP
Datasheet
DA14681-01000U22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Dialog Semiconductor GmbH
Packaging Reel - TR
Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2
Frequency 2.4GHz
Power - Output 0dBm
Sensitivity -94dBm
Memory Size 64kB OTP, 128kB ROM, 144kB SRAM
Serial Interfaces I2C, I2S, PCM, SPI, UART, USB
Supply Voltage - Operating 1.7 V to 4.5 V
Dimension 60-VFQFN
Win Source Part Number 1032350-DA14681-01000U22
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DA14681-01000U22 CAD Model

Description

The Dialog Semiconductor GmbH DA14681-01000U22 is an active electronic component. DA14681-01000U22 is manufactured by Dialog Semiconductor GmbH.

  • Supply and Demand Status: sufficient
  • Type: TxRx + MCU
  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.2
  • Memory Size: 64kB OTP, 128kB ROM, 144kB SRAM
  • Power Output: 0dBm
  • Sensitivity: -94dBm
  • Serial Interfaces: I2C, I2S, PCM, SPI, UART, USB
