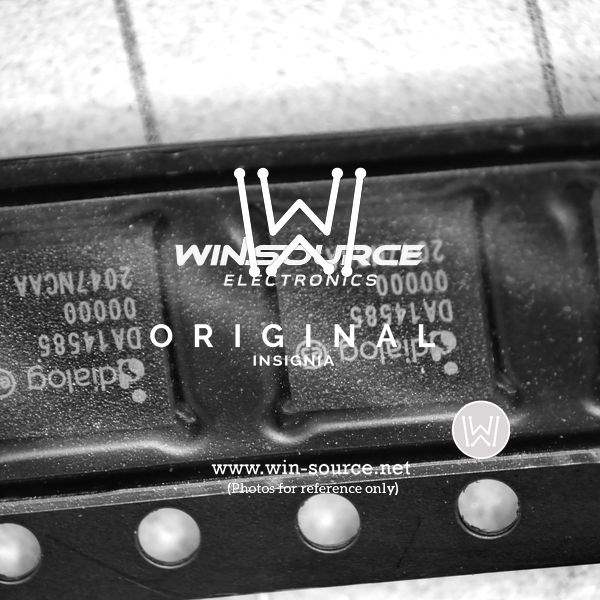

DA14585-00000AT2 Real Image DA14585-00000AT2 Real Image1 DA14585-00000AT2 Real Image2
Same model may have multiple batches, images only for reference.
DA14585-00000AT2 Real Image DA14585-00000AT2 Real Image1 DA14585-00000AT2 Real Image2
DA14585-00000AT2 Real Image DA14585-00000AT2 Real Image1 DA14585-00000AT2 Real Image2
Same model may have multiple batches, images only for reference.

DA14585-00000AT2

Part No DA14585-00000AT2
Manufacturer Dialog Semiconductor GmbH
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 40VFQFN / Smallest, lowest power and most integrated Bluetooth 5 SoC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Dialog Semiconductor GmbH
Packaging Reel
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0
Frequency 2.4GHz
Power - Output 0dBm
Sensitivity -93dBm
Memory Size 64kB OTP, 128kB ROM, 96kB SRAM
Serial Interfaces I2C, SPI, UART
GPIO 25
Supply Voltage (V) 3.3V
Current - Receiving 3.7mA
Current - Transmitting 3.4mA
Mounting Style SMD
Manufacturer Package 40-VFQFN Exposed Pad
Supplier Device Package 40-QFN (5x5)
Manufacturer Pack Quantity 5,000
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803564-DA14585-00000AT2
Ultra Librarian 3D Model Ultra Librarian DA14585-00000AT2 CAD Model

Description

The DA14585-00000AT2 is a Bluetooth v5.0 protocol-based electronic component from Dialog Semiconductor.

  • Frequency: 2.4GHz
  • Power Output: 0dBm
  • Sensitivity: -93dBm
  • OTP Memory Size: 64kB
  • ROM Memory Size: 128kB
  • SRAM Memory Size: 96kB
  • GPIO: 25
  • Serial Interfaces: I2C, SPI, UART
  • Current Consumption (Receiving): 3.7mA
  • Current Consumption (Transmitting): 3.4mA
  • Package: 40-VFQFN Exposed Pad
  • Supply Voltage: 3.3V
  • Packaging: Reel
  • Popularity: Medium
