Same model may have multiple batches, images only for reference.

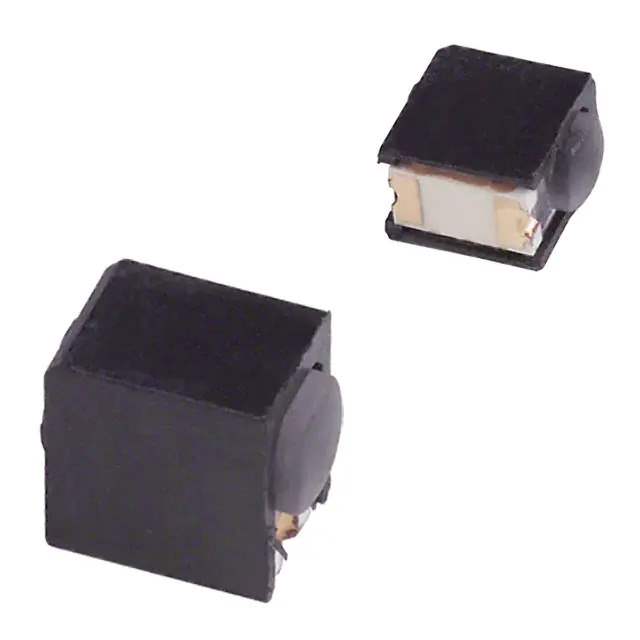

5952301013NF Real Image
Same model may have multiple batches, images only for reference.

5952301013NF

Part No 5952301013NF
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description 2MM PRISM G 13 REEL
Datasheet
5952301013NF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Dialight
Series 595
Package Tape & Reel
Product Status Active
Color Green
Wavelength - Peak 560nm
Configuration Single
Current 70mA
Millicandela Rating 19mcd
Lens Style Round
Lens Size 2.00mm Dia
Voltage Rating 2.1V
Base Product Number 5952301
Standard Package 2,300 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
California Prop 65 Warning Information
Win Source Part Number 856641-5952301013NF
Ultra Librarian 3D Model Ultra Librarian 5952301013NF CAD Model

Description

The 856641-5952301013NF is a green circuit board indicator from the 595 series manufactured by Dialight.

  • Series: 595
  • Application: Optoelectronics
  • Package: Tape and Reel
  • Voltage Rating: 2.1V
  • Millicandela Rating: 19mcd
  • Wavelength @ Peak: 560nm
  • Current Rating: 70mA
  • Lens Style: Round, 2.00mm Diameter
  • Product Status: Active
  • REACH: Unaffected
