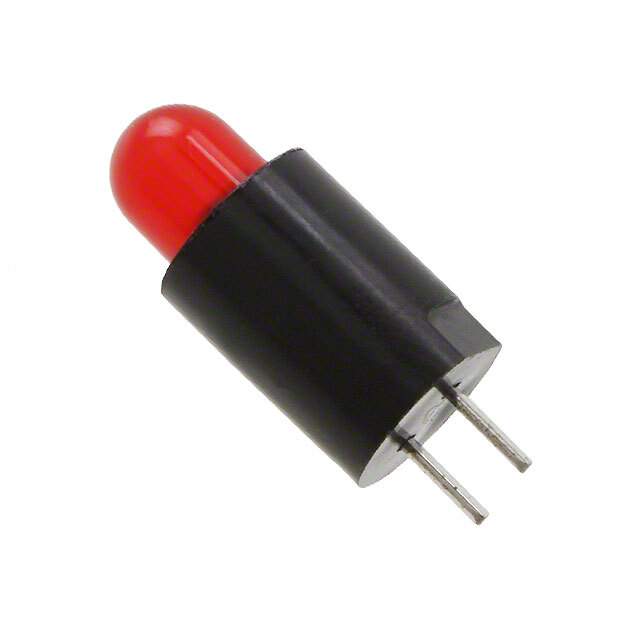

561-2101-060F Real Image
Same model may have multiple batches, images only for reference.

561-2101-060F

Part No 561-2101-060F
Manufacturer Dialight
Catalog Optics - LEDs - Light Pipes
Description 561 Series Red 5 mm 60º 7 mcd Diffused 10 mA 2.2 V LED Circuit Board Indicator
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Red
Current 10 mA
Depth 7.14 mm
Element Configuration Single
Forward Current 25 mA
Forward Voltage 2.2 V
Height 15.2 mm
Illumination Color Red
Lead Free Lead Free
Length 7.14 mm
Lens Style Diffused
Luminous Intensity 7 mcd
Max Operating Temperature 100 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Bulk
Power Dissipation 135 mW
Radiation Hardening No
Reverse Voltage 5 V
RoHS Compliant
Schedule B 8541402000, 8541402000
Test Current 10 mA
Viewing Angle 60 °
Voltage Rating 2.2 V
Wavelength 635 nm
Width 5 mm
Win Source Part Number 1160440-561-2101-060F
Categories Optics - LEDs - Light Pipes
Manufacturer Dialight
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 561-2101-060F CAD Model

Description

The Dialight electronic component is an LED light pipe with a red color.

  • Supply and Demand Status: Limited
  • Lens Style: Diffused
  • Viewing Angle: 60 degrees
  • Manufacturer: Dialight
  • Win Source Part Number: 1160440-561-2101-060F
  • Forward Voltage: 2.2 V
  • Luminous Intensity: 7 mcd
  • Wavelength: 635 nm
  • Number of Pins: 2
