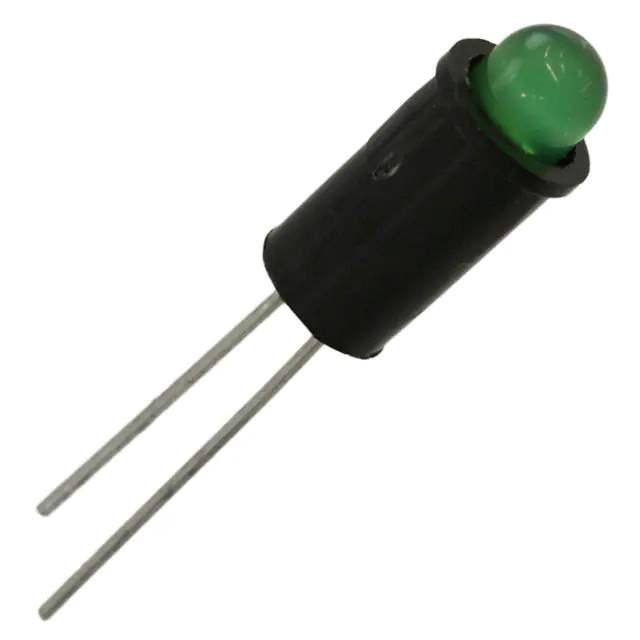

5592201001F Real Image
Same model may have multiple batches, images only for reference.

5592201001F

Part No 5592201001F
Manufacturer Dialight
Catalog Panel Indicators, Pilot Lights
Description LED PANEL GRN DIFF 2.1V SNAP-IN / LED Panel Indicator Green Diffused 65° 2.1V 25mA PC Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Panel Indicators, Pilot Lights
Mfr Dialight
Series 559
Package Bulk
Product Status Active
Type LED
Lamp Color Green
Lens Color Green
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 2.1V
Current 25mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.25" (6.35mm)
Lens Size 5mm, T-1 3/4
Lens Style Round with Domed Top
Millicandela Rating 10mcd
Wavelength - Peak 563nm
Viewing Angle 65°
Termination Style PC Pin
Base Product Number 5592201
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
California Prop 65 Warning Information
Win Source Part Number 856570-5592201001F
Ultra Librarian 3D Model Ultra Librarian 5592201001F CAD Model

Description

The 856570-5592201001F is a LED panel indicator from the 559 series by Dialight.

  • Lens Color: Green
  • Transparency: Diffused
  • Viewing Angle: 65 degrees
  • Lens Style: Round with Domed Top
  • Lens Size: 5mm (T-1 3/4)
  • Voltage: 2.1V
  • Current: 25mA
  • Millicandela Rating: 10mcd
  • Peak Wavelength: 563nm
  • Termination Style: PC Pin
  • Package: Bulk
  • Standard Package: 25 pcs
  • Panel Cutout Dimensions: 0.25" (6.35mm)
