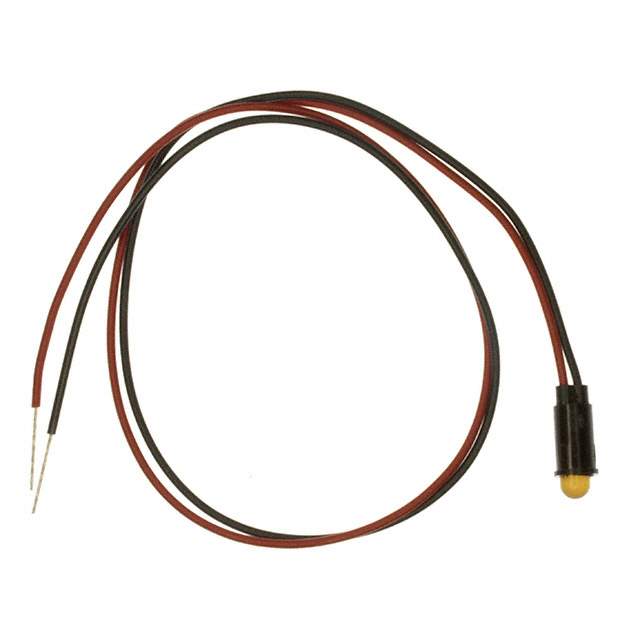

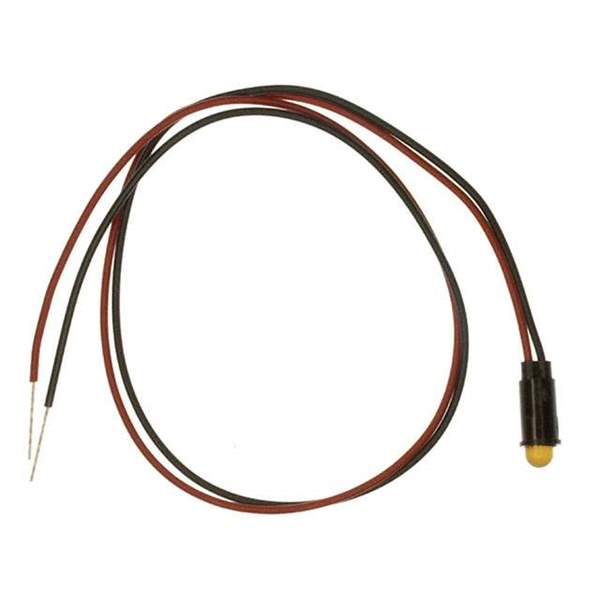

5590303007F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Manufacturer Dialight
Packaging Bulk
Type LED
Lamp Color Yellow
Lens Transparency Diffused
Ratings DC
Voltage 12V
Current 15mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.25" (6.35mm)
Lens Size 5mm, T-1 3/4
Lens Style Round with Domed Top
Millicandela Rating 8mcd
Wavelength - Peak 583nm
Viewing Angle 60°
Termination Style Wire Leads - 14" (355.60mm)
Base Product Number 5590303
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 350-2130,559-0303-007F
Standard Package 100
Win Source Part Number 1331738-5590303007F
Ultra Librarian 3D Model Ultra Librarian 5590303007F CAD Model

Description

The Dialight LED panel indicator with wire leads is a high-quality optoelectronic component that is designed for use in various electronic applications.

  • Millicandela Rating: 8mcd
  • Viewing Angle: 60-degree
  • Lens Style: Round with a domed top
  • Lens Size: 5mm
  • Lamp Color: Yellow
  • Current: 15mA
  • Voltage: 12V
  • Panel Cutout Dimensions: 0.25 inches
  • Wavelength Peak: 583nm
  • Lens Transparency: Diffused
  • ROHS: RoHS3 compliant
  • Packaging: Bulk
  • Standard Package: 100 pieces
