Same model may have multiple batches, images only for reference.

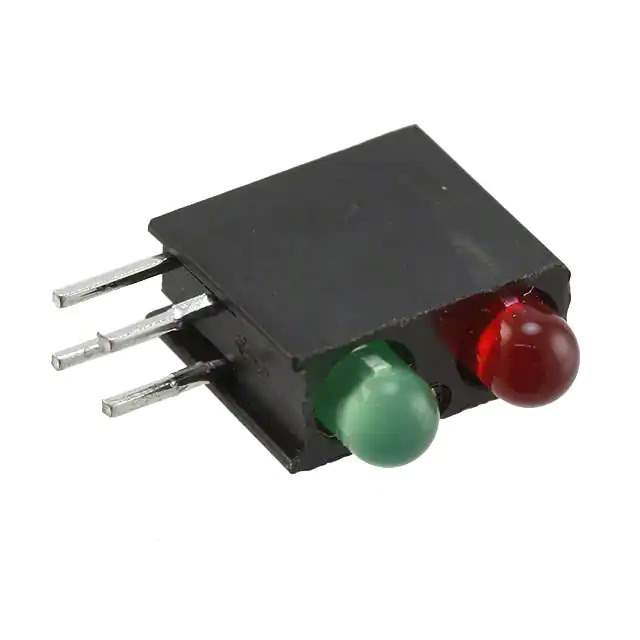

5530112F Real Image
Same model may have multiple batches, images only for reference.

5530112F

Part No 5530112F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED CBI 3MM BI-LVL RED/GREEN / LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, Tinted 2.1V Green, 2V Red 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
5530112F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Dialight
Series 553
Package Bulk
Product Status Active
Color Green (x 1), Red (x 1)
Wavelength - Peak 563nm, 650nm
Configuration 2 High
Current 10mA
Millicandela Rating 16mcd Green, 10mcd Red
Viewing Angle 45°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.1V Green, 2V Red
Mounting Type Through Hole, Right Angle
Base Product Number 5530112
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
California Prop 65 Warning Information
Win Source Part Number 848775-5530112F
Ultra Librarian 3D Model Ultra Librarian 5530112F CAD Model

Description

The 848775-5530112F is a circuit board indicator from Dialight.

  • Series: 553
  • Configuration: 2 High
  • Package: Bulk
  • Standard Package: 50 pieces
  • Color: Green and Red
  • Voltage (Green): 2.1V
  • Voltage (Red): 2V
  • Viewing Angle: 45 degrees
  • Millicandela (Green): 16mcd
  • Millicandela (Red): 10mcd
  • Peak Wavelength (Green): 563nm
  • Peak Wavelength (Red): 650nm
  • Current: 10mA
  • Lens Type: Diffused and Tinted
  • Mounting Type: Through Hole, Right Angle
  • Lens Style: Round with Domed Top
  • Lens Size: 3mm, T-1
  • ECCN: EAR99
  • MSL Level: 1
  • REACH Status: Unaffected
  • HTSUS Code: 8541.41.0000
  • Product Status: Active
