Same model may have multiple batches, images only for reference.

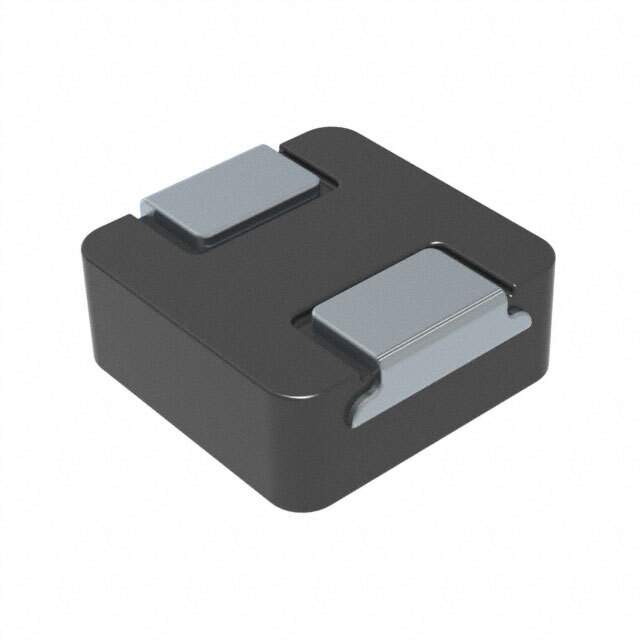

VCHA105D-100MS6 Real Image
Same model may have multiple batches, images only for reference.

VCHA105D-100MS6

Part No VCHA105D-100MS6
Manufacturer Delta Electronics
Catalog Fixed Inductors
Description FIXED IND 10UH 8.7A 24.2MOHM SMD / 10 µH Unshielded Inductor 8.7 A 24.2mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Delta Electronics/Cyntec
Packaging Reel - TR
Material - Core Metal
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 8.7 A
Current - Saturation (Isat) 10.9A
Shielding Unshielded
DC Resistance (DCR) 24.2mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 165°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.427" L x 0.394" W (10.85mm x 10.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Base Product Number VCHA105D
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 2037-VCHA105D-100MS6DKR,2037-VCHA105D-100MS6CT,2037-VCHA105D-100MS6TR,VCHA105D-100MS6-ND
Standard Package 500
Win Source Part Number 1329272-VCHA105D-100MS6
Ultra Librarian 3D Model Ultra Librarian VCHA105D-100MS6 CAD Model

Description

The VCHA105D-100MS6 is a fixed inductor from Delta Electronics/Cyntec.

  • Size Dimension: 0.427" L x 0.394" W (10.85mm x 10.00mm)
  • Height: 0.213" (5.40mm)
  • Inductance: 10 µH
  • DC Resistance (DCR): 24.2mOhm Max
  • Shielding: Unshielded
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 165°C
  • AEC-Q200: Rated
  • RoHS3: Compliant
