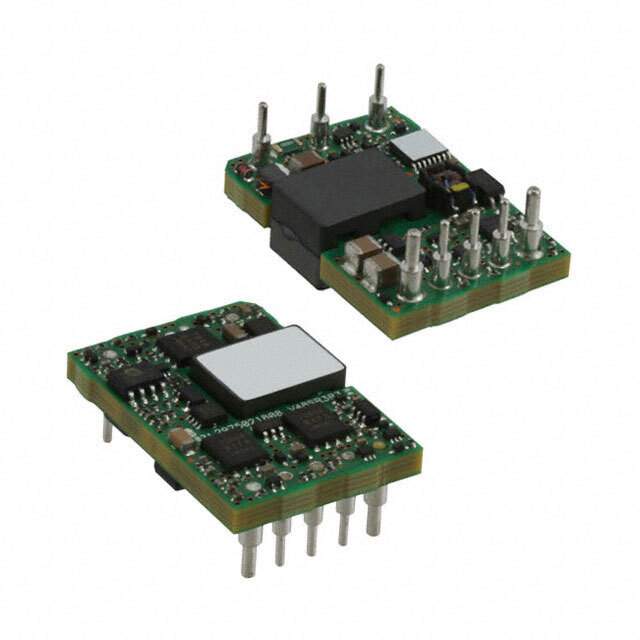

V48SR3R320NRFA Real Image
Same model may have multiple batches, images only for reference.

V48SR3R320NRFA

Part No V48SR3R320NRFA
Manufacturer Delta Electronics
Catalog Board Mount Modules
Description Module DC-DC 1-OUT 3.3V 20A 66W 8-Pin 1/16-Brick
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Module
Current - Output 1 20 A
Efficiency 90.5 %
Features OCP, OTP, OVP, UVLO
Height 9.398 mm
Isolation Voltage 2.25 kV
Length 33.02 mm
Max Input Voltage 75 V
Max Input Voltage (DC) 75 V
Max Operating Temperature 85 °C
Max Output Current 20 A
Max Power Dissipation 65 W
Min Input Voltage 36 V
Min Input Voltage (DC) 36 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Outputs 1
Number of Pins 8
Output Current 20 A
Output Power 65 W
Output Voltage 3.3 V
Radiation Hardening No
RoHS Compliant
Voltage - Output 1 3.3 V
Width 22.86 mm
Win Source Part Number 1214769-V48SR3R320NRFA
Categories Board Mount Modules
Manufacturer Delta Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V48SR3R320NRFA CAD Model

Description

The Delta Electronics 1214769-V48SR3R320NRFA is a high-performance electronic component that is designed for various applications.

  • Popularity: Medium
  • Features: OCP, OTP, OVP, and UVLO
  • Length: 33.02 mm
  • Height: 9.398 mm
  • Width: 22.86 mm
  • Isolation Voltage: 2.25 kV
  • Maximum Input Voltage: 75 V
  • RoHS Compliant: Yes
  • Maximum Output Current: 20 A
