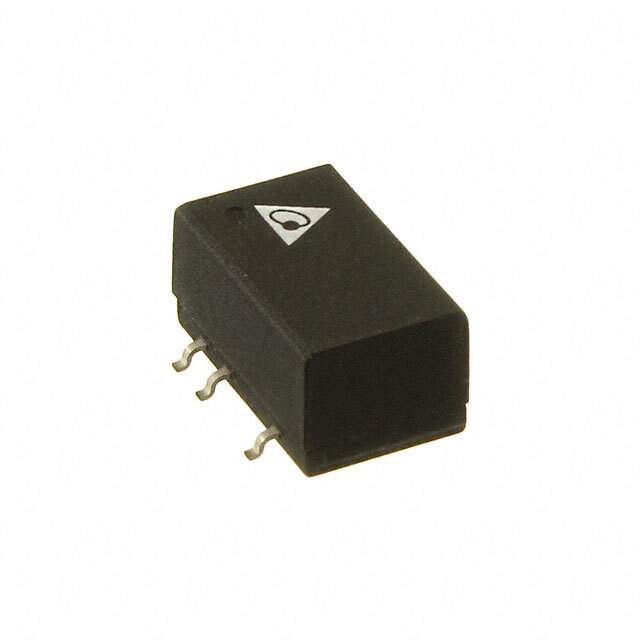

SH01S0509A

Name: SH01S0509A
Brand: Delta Electronics
SKU: 1237414
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SH01S0509A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 1W / Isolated Module DC DC Converter 1 Output 9V 110mA 4.5V - 5.5V Input
Datasheet	SH01S0509A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SH01S/D (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	9V
Current - Output (Max)	110mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Base Product Number	SH01S
Other Names	941-1282
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237414-SH01S0509A
Ultra Librarian 3D Model	Ultra Librarian SH01S0509A CAD Model

Alternative Products

Description

The SH01S/D (1W) series from Delta Electronics is a power supply board mount DC DC converter that comes in a tube package.

Type: Isolated module
Voltage Isolation: 1.5 kV
Efficiency: 78%
Maximum Output Current: 110mA
Input Voltage Range: 4.5V to 5.5V
Application: Medical
Output Voltage: 9V
Feature: SCP
Temperature Range: -40°C to 85°C
Dimensions: 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Package: 8-SMD module with 5 leads
Mounting: SMD (SMT)
