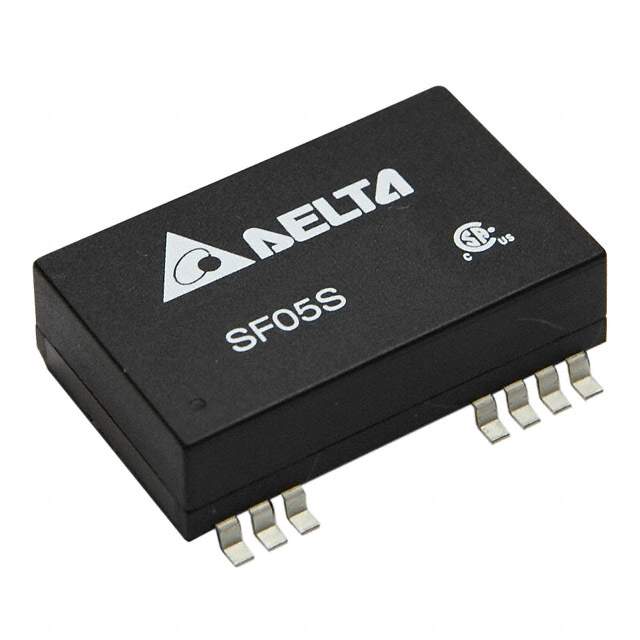

Same model may have multiple batches, images only for reference.

SF05S2415A

Name: SF05S2415A
Brand: Delta Electronics
SKU: 1237437
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SF05S2415A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 5W / Isolated Module DC DC Converter 1 Output 15V 333mA 18V - 36V Input
Datasheet	SF05S2415A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SF05S/D (5W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Current - Output (Max)	333mA
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	85%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	SF05S
Other Names	941-1369
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237437-SF05S2415A
Ultra Librarian 3D Model	Ultra Librarian SF05S2415A CAD Model

Alternative Products

Description

The SF05S/D (5W) is an isolated module power supply with a remote On/Off feature, Over Current Protection (OCP), Short Circuit Protection (SCP), and Under Voltage Lockout (UVLO) features.

Application: suitable for medical applications
Power Output: 5W
Maximum Output Current: 333mA
Efficiency: 85%
Input Voltage Range: between 18V to 36V
Output Voltage: 15V
Package: surface mount device (SMD) with a 24-SMD module, 12 leads package/case
Operating Temperature Range: between -40°C to 71°C
Dimension: 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Manufacturer: Delta Electronics
