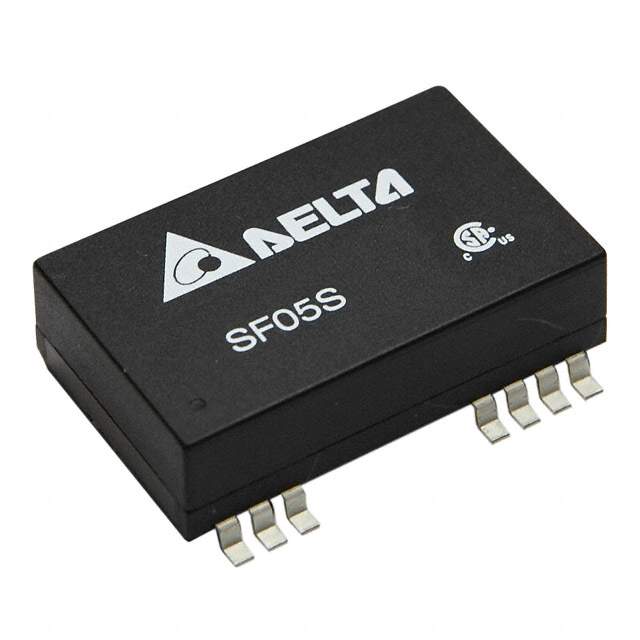

Same model may have multiple batches, images only for reference.

SF05D1205A

Get a Quote

Part No	SF05D1205A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 5W / Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 9V - 18V Input
Datasheet	SF05D1205A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SF05S/D (5W)
Package	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	500mA, 500mA
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	80%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	SF05D
Other Names	941-1374
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237424-SF05D1205A
Ultra Librarian 3D Model	Ultra Librarian SF05D1205A CAD Model

Alternative Products

Description

Delta Electronics' SF05D1205A isolated DC-DC converter is a high-performance power supply solution with a power rating of 5 W.

Outputs: two outputs with a maximum output current of 500mA each
Voltage Input Range: 9V to 18V
Temperature Range: -40°C to 71°C
Applications: medical equipment
Features: remote on/off, over-current protection (OCP), short-circuit protection (SCP), and under-voltage lockout (UVLO)
Package: 24-SMD module with 12 leads
