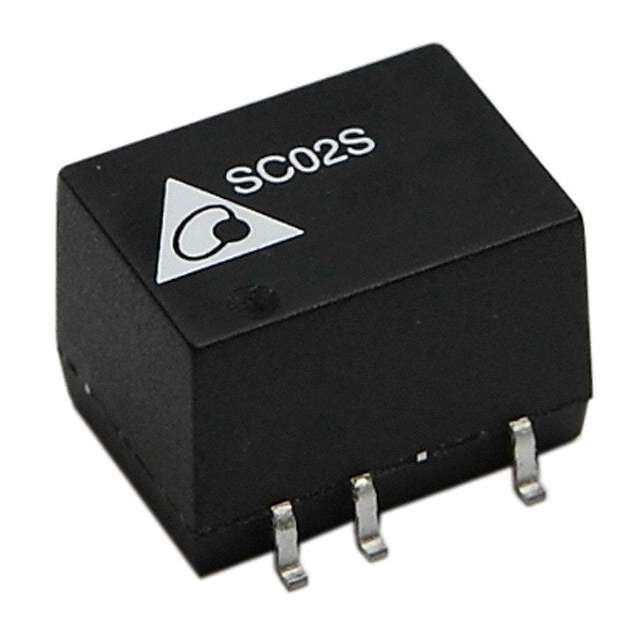

Same model may have multiple batches, images only for reference.

SC02S0505A

Get a Quote

Part No	SC02S0505A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
Datasheet	SC02S0505A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SC02S/D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	400mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	77%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm)
Base Product Number	SC02S
Other Names	941-1300
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237476-SC02S0505A
Ultra Librarian 3D Model	Ultra Librarian SC02S0505A CAD Model

Alternative Products

Description

The Delta Electronics 1237476-SC02S0505A is a 2W isolated module DC-DC converter with SCP feature.

Application: Medical applications
Standard Package: 10
Mounting Style: SMD (SMT)
Maximum Output Current: 400mA
Voltage Isolation: 1kV
Input Voltage Range: 4.5V to 5.5V
Output Voltage: 5V
Efficiency: 77%
Package/Case: 8-SMD module with 5 leads
Temperature Range: -40°C to 85°C
Dimensions: 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm)
REACH: REACH unaffected
HTSUS: 8504.40.9580
Other Names: 941-1300
Series: SC02S series
