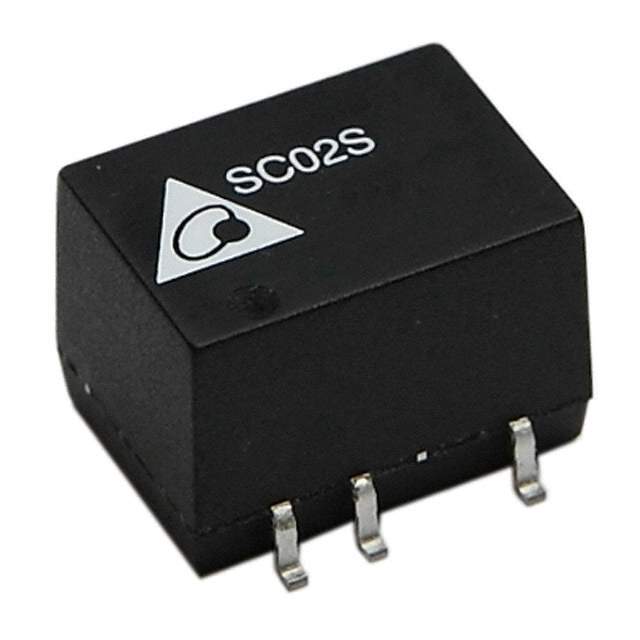

Same model may have multiple batches, images only for reference.

SC02D1212A

Get a Quote

Part No	SC02D1212A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 10.8V - 13.2V Input
Datasheet	SC02D1212A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SC02S/D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	83mA, 83mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	82%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm)
Base Product Number	SC02D
Other Names	941-1309
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237475-SC02D1212A
Ultra Librarian 3D Model	Ultra Librarian SC02D1212A CAD Model

Alternative Products

Description

The Delta Electronics SC02D1212A is a DC-DC converter that belongs to the SC02S/D (2W) series.

Type: Isolated module type
Features: Short Circuit Protection (SCP)
Package: Tube
Application: Medical applications
Standard Package: 10
Mounting Style: Surface mount (SMD)
Power Rating: 2 watts
Voltage Isolation: 1 kV
Number of Outputs: 2
Maximum Output Current: 83mA for each output
Input Voltage Range: 10.8V to 13.2V
Output Voltage: 12V, -12V
Efficiency: 82 percent
Temperature Range: -40°C to 85°C
Dimensions: 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm)
