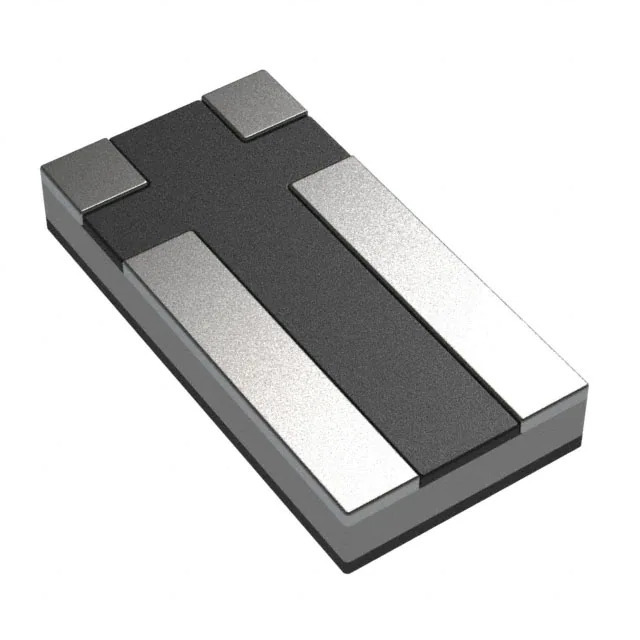

RL1632T4F-R010-FNH Delta Electronics
Same model may have multiple batches, images only for reference.

RL1632T4F-R010-FNH

Part No RL1632T4F-R010-FNH
Manufacturer Delta Electronics
Catalog Chip Resistor - Surface Mount
Description RES 0.01 OHM 1% 1W WIDE 1206
Datasheet
RL1632T4F-R010-FNH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Delta Electronics/Cyntec
Series RL1632T4F
Package Tape & Reel
Product Status Active
Resistance 10 MOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Film
Features Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case Wide 1206 (3216 Metric), 0612
Supplier Device Package 0612
Ratings -
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
Number of Terminations 4
Failure Rate -
Base Product Number RL1632T4F
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1379680-RL1632T4F-R010-FNH
Ultra Librarian 3D Model Ultra Librarian RL1632T4F-R010-FNH CAD Model

Description

The 1379680-RL1632T4F-R010-FNH is a chip resistor - surface mount from Delta Electronics/Cyntec.

  • Size: Wide 1206 (3216 Metric), 0612
  • Package Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.031" (0.80mm)
  • Temperature Range: -55°C to 150°C
  • Tolerance: ±1%
  • Resistance: 10 MOhms
  • Power Rating: 1W
