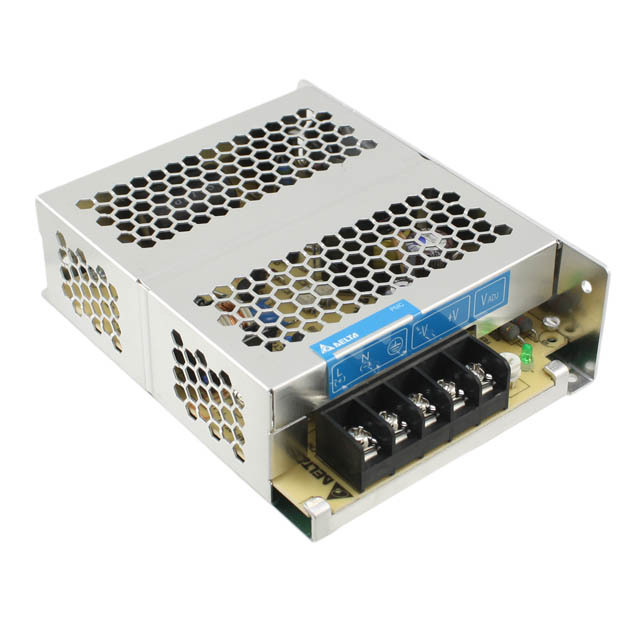

Same model may have multiple batches, images only for reference.
PMC-DSPV100W1A Delta Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PMC-DSPV100W1A

Part No PMC-DSPV100W1A
Manufacturer Delta Electronics
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 5V 100W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Type Enclosed
Number of Outputs 2
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Voltage - Output 2 5V
Current - Output 1 2.7 A
Current - Output 2 7 A
Power (Watts) 100W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 86%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, Load Sharing, Universal Input
Mounting Type Chassis Mount
Size / Dimension 7.01" L x 3.82" W x 1.50" H (178.0mm x 97.0mm x 38.0mm)
Approval Agency CB Scheme, CE, EAC, EN, SIQ, UL
Standard Number 50581; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1544201-PMC-DSPV100W1A
Ultra Librarian 3D Model Ultra Librarian PMC-DSPV100W1A CAD Model
