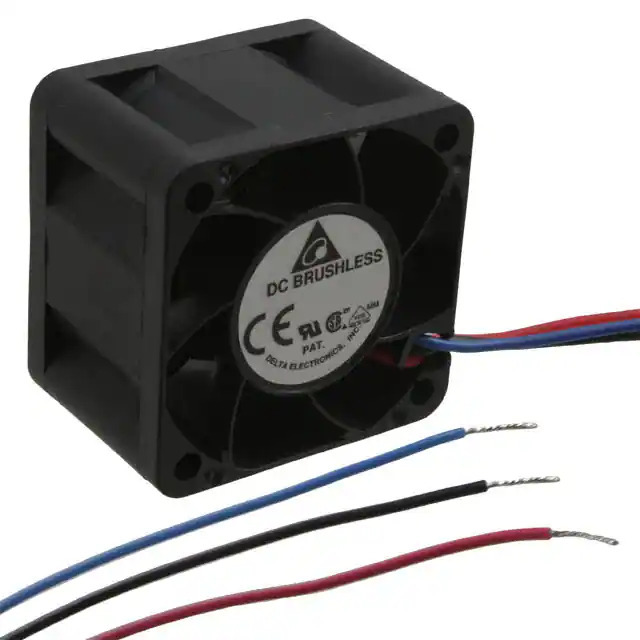

FFB0412VHN-BF00 Delta Electronics
Same model may have multiple batches, images only for reference.

FFB0412VHN-BF00

Part No FFB0412VHN-BF00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 40X28MM 12VDC WIRE
Datasheet
FFB0412VHN-BF00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series FFB
Package Box
Product Status Obsolete
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 15.8 CFM (0.442m³/min)
Static Pressure 0.509 in H2O (126.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 45.0dB(A)
Power (Watts) 1.92 W
RPM 9500 RPM
Termination 3 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.071 lb (32.21 g)
Current Rating (Amps) 0.160A
Voltage Range 4.5 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number FFB0412
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368418-FFB0412VHN-BF00
Ultra Librarian 3D Model Ultra Librarian FFB0412VHN-BF00 CAD Model

Description

The Delta Electronics FFB0412VHN-BF00 is a DC brushless fan designed for thermal management in electronic devices.

  • Series: FFB
  • Size: 40mm length and 40mm height
  • Rated Voltage: 12VDC
  • Current Rating: 0.160A
  • Power Consumption: 1.92W
  • Speed: 9500 RPM
  • Air Flow: 15.8 CFM
  • Static Pressure: 0.509 in H2O
  • Protection: Locked Rotor Protection
  • Speed Sensor (tach): Yes
  • Bearing Type: Ball Bearing
  • Lifetime: 70000 hours @ 40°C
  • Compliant Standards: CE, CSA, UL, and VDE
