Same model may have multiple batches, images only for reference.

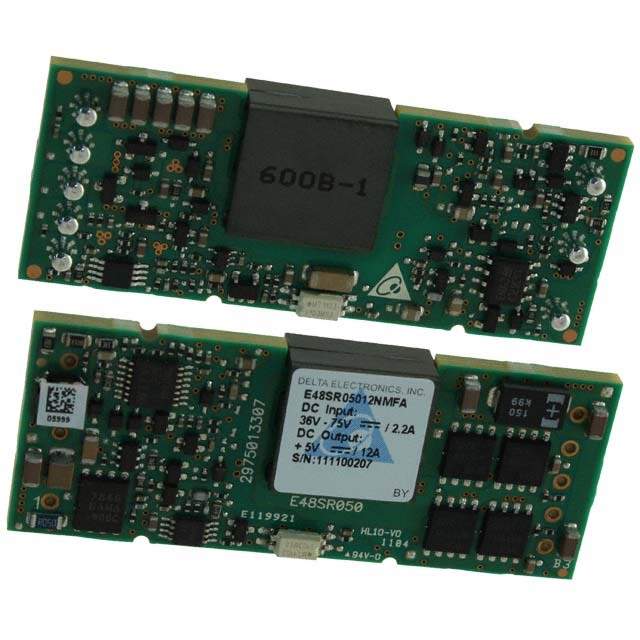

E48SR12006NNFA Real Image
Same model may have multiple batches, images only for reference.

E48SR12006NNFA

Part No E48SR12006NNFA
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 72W  /  Isolated Module DC DC Converter 1 Output 12V 6A 36V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi E48SR (66W)
Package Tray
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 6A
Power (Watts) 72 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 115°C
Efficiency 92.5%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.33" H (58.4mm x 22.9mm x 8.4mm)
Control Features Enable, Active Low
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1050
Standard Package 126
Win Source Part Number 1007655-E48SR12006NNFA
Ultra Librarian 3D Model Ultra Librarian E48SR12006NNFA CAD Model

Description

The Delphi E48SR (66W) isolated module is a power supply board mount DC-DC converter that is suitable for ITE (Commercial) applications.

  • Features: Remote On/Off, OCP, OTP, OVP, and UVLO
  • Standard Package: 126
  • Power: 72W
  • Output: Single
  • Current Output: 6A (Max)
  • Input Voltage: 36V to 75V
  • Output Voltage: 12V
  • Efficiency: 92.5%
  • Operating Temperature: -40°C to 115°C
  • Dimension: 2.30" L x 0.90" W x 0.33" H (58.4mm x 22.9mm x 8.4mm)
  • Mounting: Through Hole
  • Manufacturer: Delta Electronics
  • Also Known As: 941-1050
  • Status: Obsolete
