Same model may have multiple batches, images only for reference.

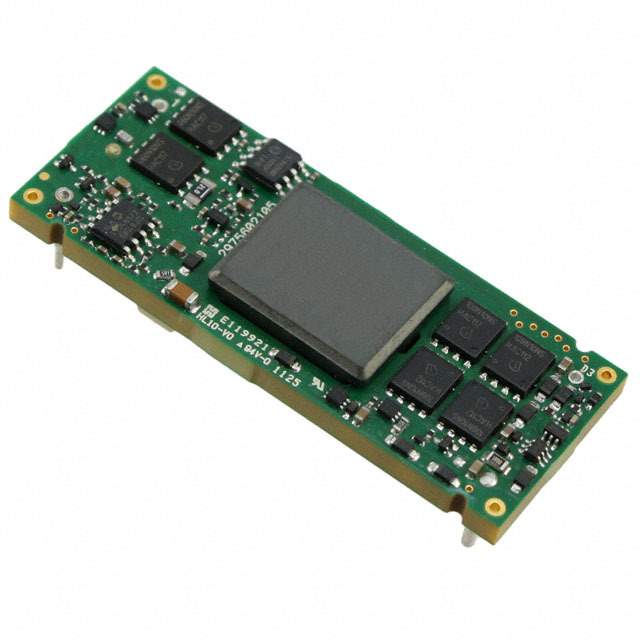

E48SP12020NRFA Real Image
Same model may have multiple batches, images only for reference.

E48SP12020NRFA

Part No E48SP12020NRFA
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 240W / Isolated Module DC DC Converter 1 Output 12V 20A 36V - 75V Input
Datasheet
E48SP12020NRFA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi E48SP
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 20A
Power (Watts) 240 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 122°C
Efficiency 94.5%
Mounting Type Through Hole
Package / Case 5-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 10.9mm)
Control Features Enable, Active Low
Base Product Number E48SP
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1053
Standard Package 21
Win Source Part Number 990852-E48SP12020NRFA
Ultra Librarian 3D Model Ultra Librarian E48SP12020NRFA CAD Model

Description

The Delphi E48SP series isolated module DC-DC converter is a high-performance power supply solution for ITE (Commercial) applications.

  • Power Output: 240W
  • Current: 20A
  • Function: remote On/Off
  • Protection: OCP, OTP, OVP, and UVLO
  • Efficiency: 94.5%
  • Package: 5-DIP module, 1/8 Brick
  • Mounting: through the hole
  • Operating Temperature: -40°C and 122°C
  • Voltage Isolation: 2.25 kV
  • Control Features: Enable, Active Low
  • Package: 21 standard units
