Same model may have multiple batches, images only for reference.

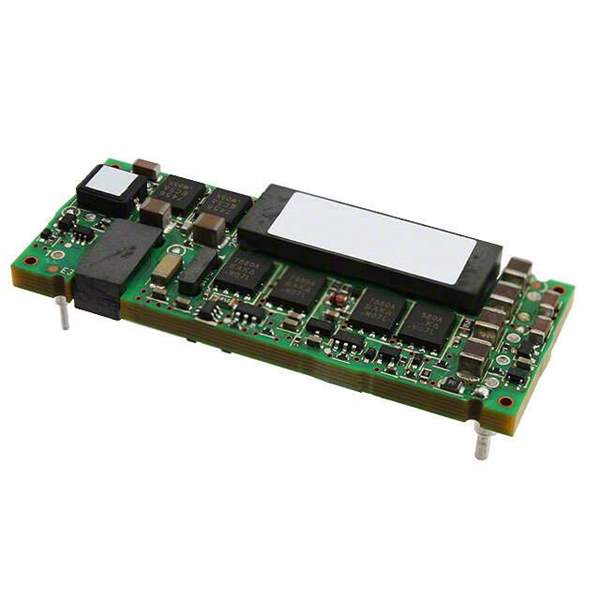

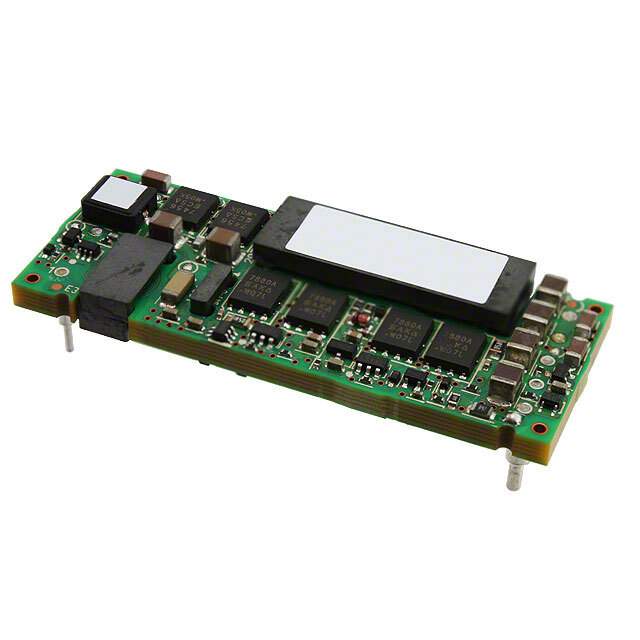

E48SH3R330NRFA Real Image
Same model may have multiple batches, images only for reference.

E48SH3R330NRFA

Part No E48SH3R330NRFA
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 120W / Isolated Module DC DC Converter 1 Output 3.3V 30A 36V - 75V Input
Datasheet
E48SH3R330NRFA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi E48SH (120W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 30A
Power (Watts) 120 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 129°C
Efficiency 92%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.37" H (58.4mm x 22.9mm x 9.4mm)
Control Features Enable, Active Low
Base Product Number E48SH
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1019
Standard Package 21
Win Source Part Number 1031592-E48SH3R330NRFA
Ultra Librarian 3D Model Ultra Librarian E48SH3R330NRFA CAD Model

Description

The Delta Electronics E48SH3R330NRFA is an isolated module DC-DC converter with a power rating of 120W.

  • Power Rating: 120W
  • Features: Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), Overvoltage Protection (OVP), Undervoltage Lockout (UVLO)
  • Mounting Type: Through-Hole
  • Package: 8-DIP module, 1/8 brick
  • Voltage Isolation: 2.25 kV
  • Temperature Range: -40°C to 129°C
  • Application: ITE (Commercial)
