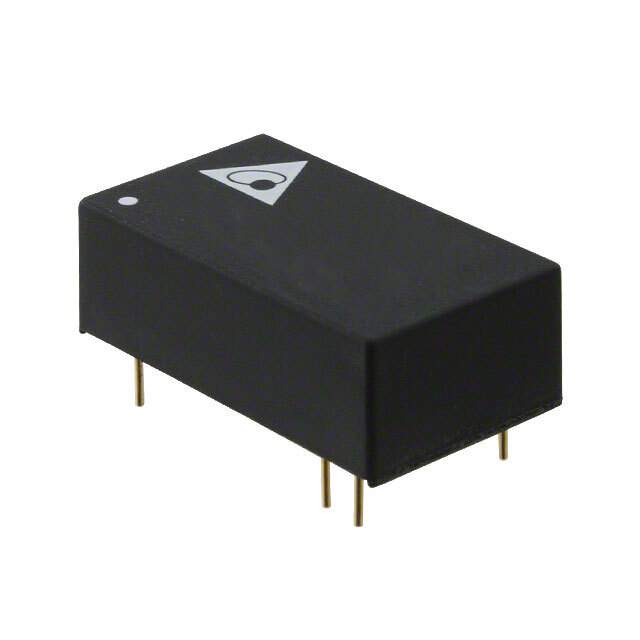

Same model may have multiple batches, images only for reference.

DB02S2405A

Name: DB02S2405A
Brand: Delta Electronics
SKU: 1335131
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DB02S2405A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 18V - 36V Input
Datasheet	DB02S2405A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Delta Electronics
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	400mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP, UVLO
Temperature Range - Operating	-40°C ~ 80°C
Efficiency	77%
Mounting	Through Hole
Case / Package	16-DIP Module, 6 Leads
Size / Dimension	0.94" L x 0.54" W x 0.30" H (23.9mm x 13.7mm x 7.5mm)
Base Product Number	DB02S
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	941-1404
Standard Package	10
Win Source Part Number	1335131-DB02S2405A
Ultra Librarian 3D Model	Ultra Librarian DB02S2405A CAD Model

Alternative Products

Description

The Delta Electronics DB02S2405A is an isolated module DC-DC converter that is used in electronic circuits for converting DC voltage.

Power Output: 2W
Efficiency: 77%
Output: Single output of 5V
Maximum Output Current: 400mA
Packaging: Tube
Package: 10
Application: Medical applications
Popularity: Medium
