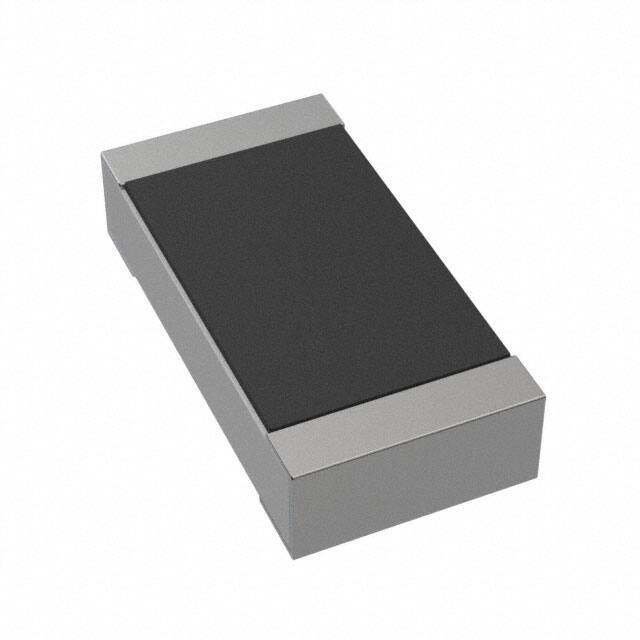

Same model may have multiple batches, images only for reference.
CML0510-3N3-CNH
Same model may have multiple batches, images only for reference.

CML0510-3N3-CNH

Part No CML0510-3N3-CNH
Manufacturer Delta Electronics
Catalog Fixed Inductors
Description FIXED IND 3.3NH 500MA 200MOHM SM / 3.3 nH Shielded Thin Film Inductor 500 mA 200mOhm Max 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Delta Electronics
Series CML0510
Package Tape & Reel
Product Status Obsolete
Type Thin Film
Inductance 3.3 nH
Tolerance ±0.2nH
Current Rating (Amps) 500 mA
Shielding Shielded
DC Resistance (DCR) 200mOhm Max
Q @ Freq 10 @ 100MHz
Frequency - Self Resonant 7GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.020" (0.50mm)
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 866924-CML0510-3N3-CNH
Ultra Librarian 3D Model Ultra Librarian CML0510-3N3-CNH CAD Model

Description

The 866924-CML0510-3N3-CNH is a thin film fixed inductor manufactured by Delta Electronics.

  • Series: CML0510
  • Mounting: Surface Mount
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.020" (0.50mm)
  • Type: Shielded
  • Inductance: 3.3 nH
  • Tolerance: ±0.2nH
  • DC Resistance (DCR): 200mOhm max
  • Current Rating: 500 mA
  • Frequency Self-Resonant: 7GHz
  • Q value: 10 @ 100MHz
  • Operating Temperature: -40°C to 125°C
  • Package: Tape & Reel
  • Product Status: Obsolete
