Same model may have multiple batches, images only for reference.

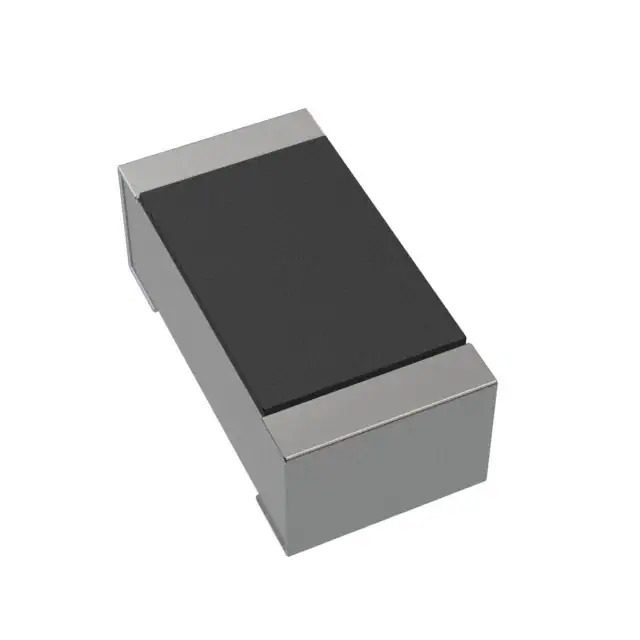

CML0306-1N5-BNH Delta Electronics
Same model may have multiple batches, images only for reference.

CML0306-1N5-BNH

Part No CML0306-1N5-BNH
Manufacturer Delta Electronics
Catalog Fixed Inductors
Description FIXED IND 1.5NH 650MA 160MOHM SM
Datasheet
CML0306-1N5-BNH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Delta Electronics/Cyntec
Series CML0306
Package Tape & Reel
Product Status Obsolete
Type Thin Film
Material - Core -
Inductance 1.5 nH
Tolerance ±0.1nH
Current Rating (Amps) 650 mA
Current - Saturation (Isat) -
Shielding Shielded
DC Resistance (DCR) 160mOhm Max
Q @ Freq 5 @ 100MHz
Frequency - Self Resonant 6GHz
Ratings -
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 MHz
Features -
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Size / Dimension 0.024" L x 0.012" W (0.61mm x 0.31mm)
Height - Seated (Max) 0.013" (0.33mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369811-CML0306-1N5-BNH
Ultra Librarian 3D Model Ultra Librarian CML0306-1N5-BNH CAD Model

Description

The CML0306-1N5-BNH is a thin film fixed inductor from Delta Electronics/Cyntec. It is part of the CML0306 series and comes in a 0201 (0603 Metric) package.

  • Series: CML0306
  • Package: 0201 (0603 Metric)
  • Inductance: 1.5 nH
  • Current Rating: 650 mA
  • Mounting Type: Surface Mount
  • Height: 0.013" (0.33mm) Max
  • Shielding: Shielded
  • DC Resistance (DCR): 160mOhm Max
  • Self-Resonant Frequency: 6GHz
  • Tolerance: ±0.1nH
  • Q Value: 5 @ 100MHz
