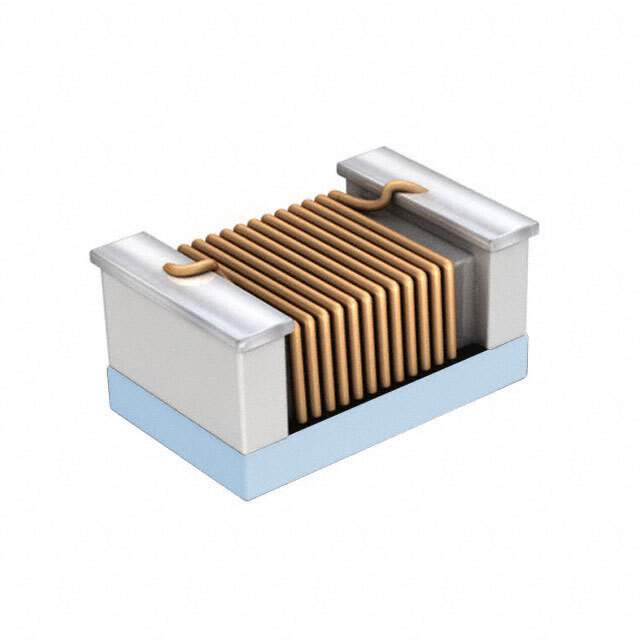

Same model may have multiple batches, images only for reference.

0402HS-300EJTS

Name: 0402HS-300EJTS
Brand: Delta Electronics
SKU: 1380369
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0402HS-300EJTS
Manufacturer	Delta Electronics
Catalog	Fixed Inductors
Description	FIXED IND 30NH 400MA 350MOHM SMD / 30 nH Unshielded Drum Core, Wirewound Inductor 400 mA 350mOhm 0402 (1005 Metric)
Datasheet	0402HS-300EJTS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Delta Electronics
Series	0402HS
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	30 nH
Tolerance	±5%
Current Rating (Amps)	400 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	350mOhm
Q @ Freq	25 @ 250MHz
Frequency - Self Resonant	2.35GHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Size / Dimension	0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max)	0.024" (0.60mm)
Base Product Number	0402HS
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	4,000 pcs
Win Source Part Number	1380369-0402HS-300EJTS
Ultra Librarian 3D Model	Ultra Librarian 0402HS-300EJTS CAD Model

Alternative Products

Description

The Delta Electronics 1197506 is a 0402HS fixed inductor with an inductance of 30nH.

Inductance: 30nH
Tolerance: ±5%
DC Resistance: 350mOhm
Core Material: Ceramic
Package: Tape & Reel
Mounting Type: Surface Mount
Manufacturer: Delta Electronics
Status: Active
Series: 0402HS
