Same model may have multiple batches, images only for reference.

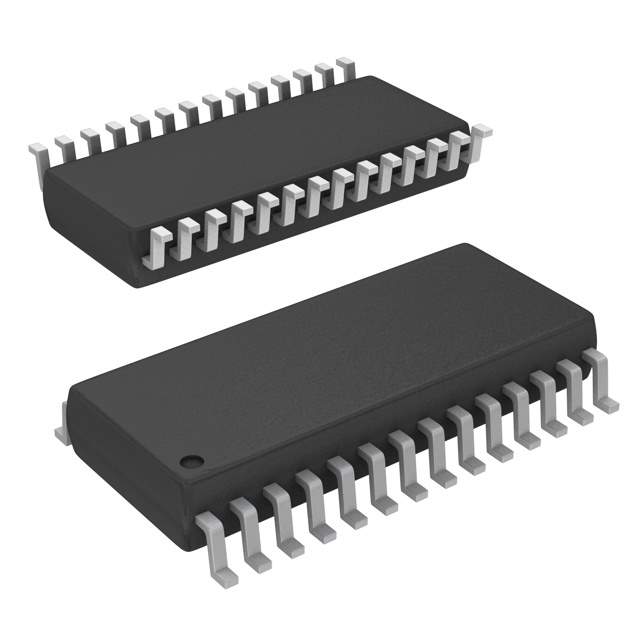

STK22C48-NF25ITR Real Image
Same model may have multiple batches, images only for reference.

STK22C48-NF25ITR

Part No STK22C48-NF25ITR
Manufacturer Cypress Semiconductor Corp
Catalog SRAM
Description IC NVSRAM 16KBIT 25NS 28SOIC / NVRAM NVSRAM Parallel 16Kbit 5V 28-Pin SOIC T/R
Datasheet
STK22C48-NF25ITR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Packaging Reel package
Part Status Obsolete(EOL)
Memory Type Non-Volatile
Memory Format NVSRAM
Technology NVSRAM (Non-Volatile SRAM)
Memory Size 16Kb (2K x 8)
Write Cycle Time - Word, Page 25ns
Access Time 25ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 28-SOIC (0.295", 7.50mm Width)
Manufacturer Package 28-SOIC
Win Source Part Number 795640-STK22C48-NF25ITR
Popularity Medium
Supply and Demand Status Limited
Family Name STK22C48
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian STK22C48-NF25ITR CAD Model

Description

The STK22C48-NF25ITR is an electronic component manufactured by Cypress Semiconductor Corp.

  • Package: 28-SOIC (0.295", 7.50mm Width)
  • Operating Temperature: -40°C - 85°C
  • Category: Integrated Circuits (ICs)
  • Popularity: Medium
  • Obsolete: True
  • Estimated EOL Date: True
  • Halogen-Free Compliant: True
  • Memory Size: 16Kb (2K x 8)
  • Memory Type: NVSRAM (Non-Volatile SRAM)
  • Memory Interface: Parallel
  • Write Cycle Time: 25ns
  • Alternative Parts: X20C16SI-55, X20C16DI-35, X20C16DMB-45
