Same model may have multiple batches, images only for reference.

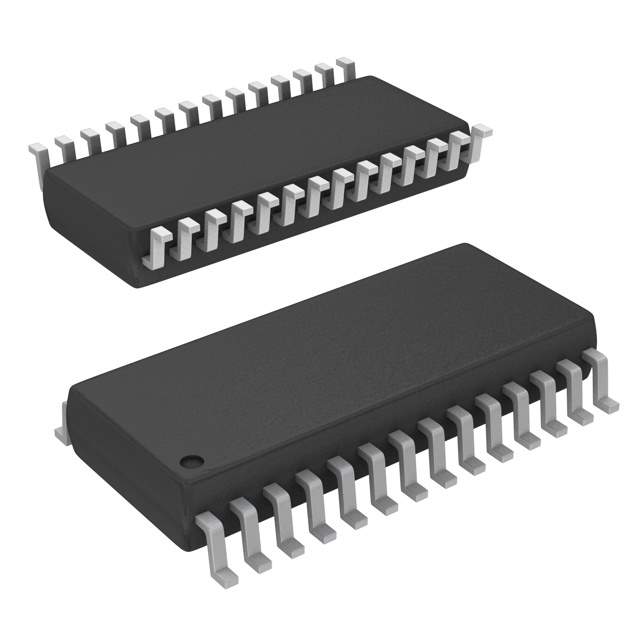

STK22C48-NF25I Real Image
Same model may have multiple batches, images only for reference.

STK22C48-NF25I

Part No STK22C48-NF25I
Manufacturer Cypress Semiconductor Corp
Catalog RAM
Description IC NVSRAM 16KBIT PARALLEL 28SOIC / NVSRAM (Non-Volatile SRAM) Memory IC 16Kb (2K x 8) Parallel 25 ns 28-SOIC
Datasheet
STK22C48-NF25I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Package Tube
Product Status Obsolete
Memory Type Non-Volatile
Memory Format NVSRAM
Technology NVSRAM (Non-Volatile SRAM)
Memory Size 16Kb (2K x 8)
Memory Interface Parallel
Write Cycle Time - Word, Page 25ns
Access Time 25 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Base Product Number STK22C48
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0041
Standard Package 27
Win Source Part Number 1096965-STK22C48-NF25I
Ultra Librarian 3D Model Ultra Librarian STK22C48-NF25I CAD Model

Description

The STK22C48-NF25I is a non-volatile 16Kb (2K x 8) NVSRAM memory chip from Cypress Semiconductor Corp.

  • Voltage Supply Range: It has a voltage supply range of 4.5V to 5.5V and operates within a temperature range of -40°C to 85°C.
  • Memory Format and Interface: The memory format is NVSRAM with a memory interface of parallel.
  • Write Cycle Time and Package: The chip has a write cycle time of 25ns and comes in a 28-SOIC package.
  • Ideal Use: The chip is ideal for use in electronic devices that require high-speed data transfer and non-volatile memory storage.
