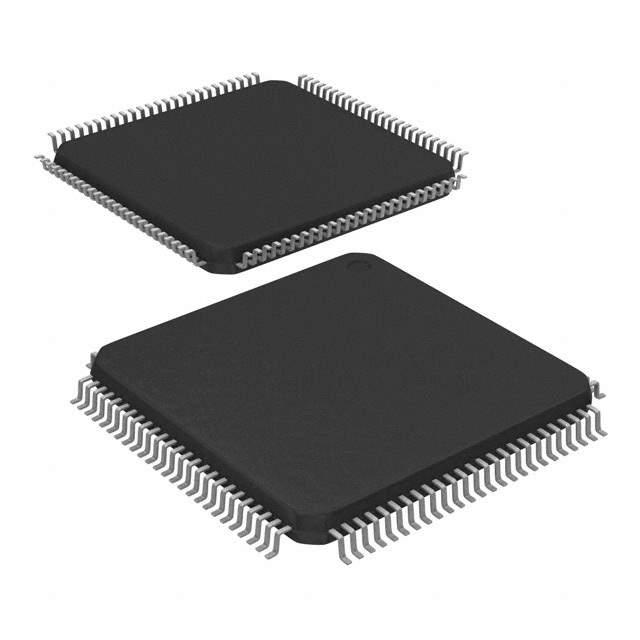

S6E2H46F0AGV20000 Real Image
Same model may have multiple batches, images only for reference.

S6E2H46F0AGV20000

Part No S6E2H46F0AGV20000
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Cypress Semiconductor Corp
Series FM4 S6E2H4
Package Tray
Core Processor ARM® Cortex®-M4F
Core Size 32-Bit Single-Core
Speed 160MHz
Connectivity CANbus, CSIO, EBI/EMI, I²C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 80
Program Memory Size 544KB (544K x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Supply Voltage - Operating 2.7V ~ 5.5V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 100-LQFP
Supplier Device Package 100-LQFP (14x14)
Base Product Number S6E2H46
Other Names 428-3688,S6E2H46F0AGV20000,S6E2H46F0AGV2000M
Standard Package 900
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1264811-S6E2H46F0AGV20000
Ultra Librarian 3D Model Ultra Librarian S6E2H46F0AGV20000 CAD Model

Description

The S6E2H46F0AGV20000 is an embedded microcontroller integrated circuit from Cypress Semiconductor Corp.

  • Series: FM4 S6E2H4
  • Core Processor: ARM® Cortex®-M4F
  • Core Size: 32-bit single-core
  • Speed: 160MHz
  • Program Memory Size: 544KB (544K x 8)
  • Program Memory Type: FLASH
  • Supply Voltage: 2.7V ~ 5.5V
  • Operating Temperature: -40°C ~ 125°C (TA)
