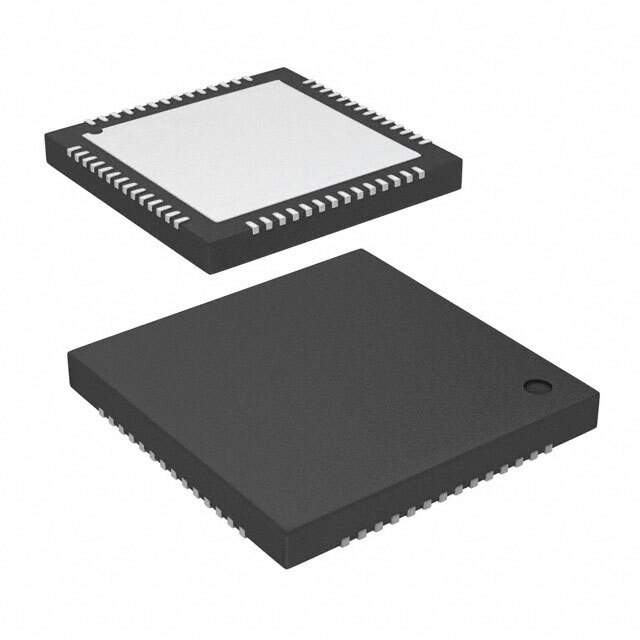

The CYBL10162-56LQXI is a Bluetooth Low Energy (BLE) Radio System-on-Chip (SoC) from Cypress Semiconductor (now Infineon). It is designed for a wide range of IoT applications requiring low power consumption and wireless connectivity. This SoC integrates a BLE radio, a microcontroller, and various peripherals into a single chip, simplifying system design and reducing BOM cost.

Applications

• Wearable devices: Used in smartwatches, fitness trackers, and other wearable devices for wireless communication and data logging.
• Healthcare devices: Integrated into medical sensors, blood glucose meters, and other healthcare devices for remote monitoring.
• Home automation: Employed in smart lighting, thermostats, and other home automation systems for wireless control and communication.
• Industrial IoT: Used in industrial sensors, asset tracking devices, and other industrial IoT applications.
• Beacons: Deployed in retail, hospitality, and other industries for location-based services and proximity marketing.

Features

• Bluetooth Low Energy (BLE): Supports BLE 4.2 and 5.0 standards for low-power wireless communication.
• Integrated Microcontroller: Includes a Cortex-M0 core for application processing.
• On-Chip Memory: Features Flash memory for program storage and SRAM for data storage.
• Analog and Digital Peripherals: Integrates ADCs, DACs, timers, PWMs, and other peripherals.
• Low Power Consumption: Optimized for long battery life in portable applications.

Benefits

• Simplified Design: Integrates multiple functions into a single chip, reducing the need for external components.
• Reduced BOM Cost: Eliminates the need for external BLE modules and microcontrollers, lowering BOM cost.
• Low Power Consumption: Extends battery life in portable devices, reducing the need for frequent charging.
• Wireless Connectivity: Enables wireless communication and data transfer, improving user convenience.
• Fast Development: Supported by Cypress' development tools and software libraries, accelerating development.

Additional Details

The CYBL10162-56LQXI operates in the 2.4 GHz ISM band. It supports various BLE profiles and services. The integrated microcontroller can be programmed using the Cypress PSoC Creator IDE. The device includes security features such as encryption and authentication. It typically operates at a voltage range of 1.71V to 5.5V. Consider using an external antenna for optimal wireless performance. Refer to the Cypress Semiconductor website (now Infineon) for datasheets, application notes, and software examples. The package is a 56-pin QFN. Proper antenna design and placement are crucial for achieving optimal range and performance.
