The CY8C6347BZI-BLD53 is a PSoC 6 (Programmable System-on-Chip) microcontroller from Cypress Semiconductor, now Infineon Technologies. These devices are designed for advanced embedded systems that require a combination of high performance, low power consumption, and flexible peripherals. The PSoC 6 family features dual-core architecture, advanced security features, and support for various communication protocols.

Applications:

• Industrial IoT (IIoT): Used in industrial sensors, gateways, and control systems.
• Wearable Devices: Employed in smartwatches, fitness trackers, and other wearable electronics.
• Smart Home Automation: Used in smart thermostats, lighting controls, and security systems.
• Medical Devices: Found in portable medical devices, remote patient monitoring, and diagnostic equipment.
• Automotive Applications: Used in in-vehicle infotainment systems, advanced driver-assistance systems (ADAS), and body control modules.

Features:

• Dual-Core Architecture: Features an ARM Cortex-M4 core for high-performance tasks and an ARM Cortex-M0+ core for low-power operations.
• Programmable Analog: Configurable analog blocks including high-resolution ADCs, DACs, and programmable gain amplifiers (PGAs).
• Programmable Digital: Flexible digital blocks for timers, counters, PWMs, and serial communication interfaces.
• CapSense Touch Sensing: Integrated CapSense technology for touch-based user interfaces with advanced features like gesture recognition.
• Security Features: Hardware-based security features including secure boot, secure storage, and cryptographic acceleration.
• Low Power Consumption: Designed for ultra-low power operation to maximize battery life in portable applications.
• Communication Interfaces: Supports a wide range of communication interfaces including USB, CAN, Ethernet, SPI, I2C, and UART.

Benefits:

• High Performance and Low Power: Dual-core architecture enables optimal performance and power consumption for diverse workloads.
• Flexible and Customizable: Programmable analog and digital blocks allow for highly customized solutions.
• Advanced Security: Hardware-based security features protect against unauthorized access and data breaches.
• Easy to Use Development Tools: Cypress’s ModusToolbox provides a comprehensive development environment for PSoC 6.
• Integrated CapSense: Simplifies the implementation of advanced touch-based user interfaces.

Technical Specifications:

• CPU Cores: ARM Cortex-M4 (150 MHz) and ARM Cortex-M0+ (100 MHz)
• Flash Memory: Up to 2MB
• SRAM: Up to 1MB
• Operating Voltage: 1.7V to 3.6V
• Operating Temperature: -40°C to +85°C
• ADC Resolution: Up to 20 bits
• Communication Interfaces: USB, CAN, Ethernet, SPI, I2C, UART

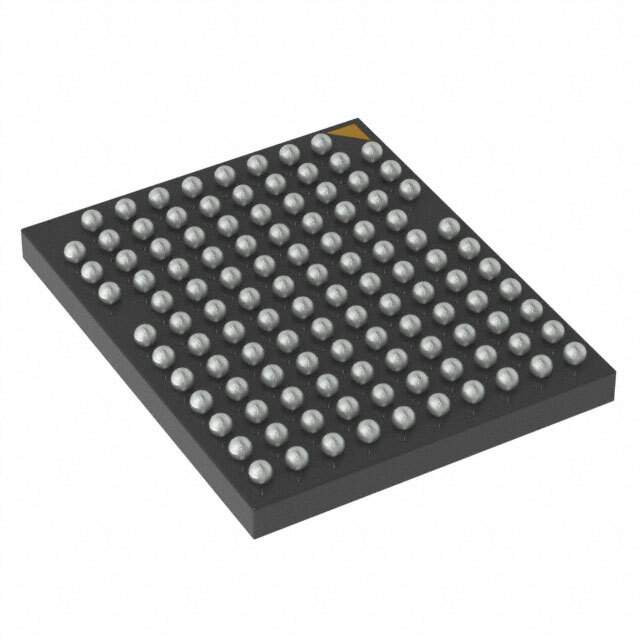

• Package: Various package options available (e.g., QFN, BGA)
