Same model may have multiple batches, images only for reference.

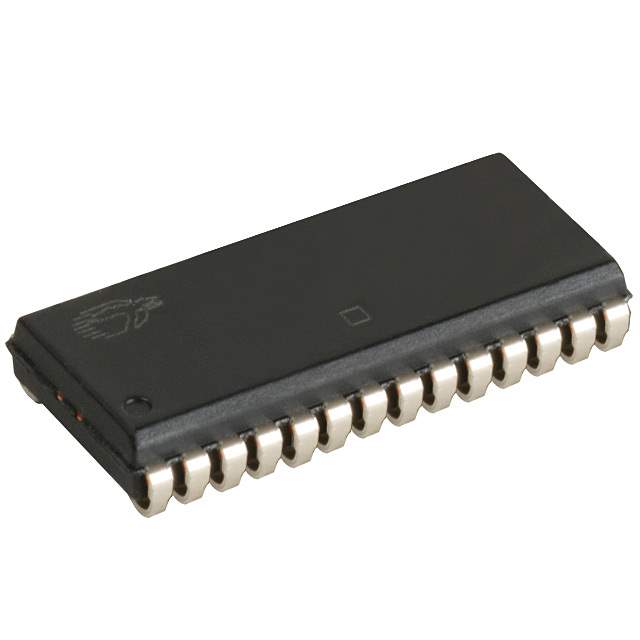

CY7C199CNL-15VXIT Real Image
Same model may have multiple batches, images only for reference.

CY7C199CNL-15VXIT

Part No CY7C199CNL-15VXIT
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC SRAM 256KBIT PARALLEL 28SOJ / SRAM - Asynchronous Memory IC 256Kb (32K x 8) Parallel 15 ns 28-SOJ
Datasheet
CY7C199CNL-15VXIT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory>Memory
Manufacturer Cypress Semiconductor Corp
Packaging Reel - TR
Product Status Obsolete
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 256Kb (32K x 8)
Memory Interface Parallel
Write Cycle Time - Word, Page 15ns
Access Time 15 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 28-BSOJ (0.300", 7.62mm Width)
Supplier Device Package 28-SOJ
Base Product Number CY7C199
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0041
Standard Package 1,000
Win Source Part Number 1317173-CY7C199CNL-15VXIT
Ultra Librarian 3D Model Ultra Librarian CY7C199CNL-15VXIT CAD Model

Description

The CY7C199CNL-15VXIT is a 256Kb (32K x 8) SRAM - Asynchronous memory from Cypress Semiconductor Corp.

  • Access Time: 15 ns
  • Voltage Supply: 4.5V to 5.5V
  • Memory Interface: Parallel
  • Memory Format: SRAM
  • Temperature Range: -40°C to 85°C
  • Package: 28-SOJ
  • Mounting: Surface
  • Product Status: Obsolete
  • Compliance: ROHS3 compliant
