Same model may have multiple batches, images only for reference.

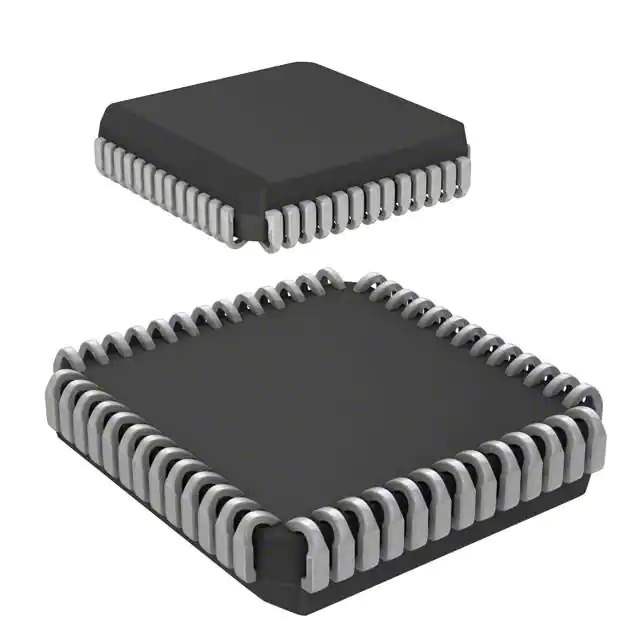

CY7C136E-55JXC Real Image
Same model may have multiple batches, images only for reference.

CY7C136E-55JXC

Part No CY7C136E-55JXC
Manufacturer Cypress Semiconductor Corp
Catalog Memory
Description IC SRAM 16KBIT PARALLEL 52PLCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Cypress Semiconductor Corp
Package Tube
Product Status Obsolete
Programmable Not Verified
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Dual Port, Asynchronous
Memory Size 16Kbit
Memory Organization 2K x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 55ns
Access Time 55 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 52-LCC (J-Lead)
Supplier Device Package 52-PLCC (19.13x19.13)
Base Product Number CY7C136
Standard Package 28 pcs
ECCN EAR99
HTSUS 8542.32.0041
Win Source Part Number 846272-CY7C136E-55JXC
Ultra Librarian 3D Model Ultra Librarian CY7C136E-55JXC CAD Model

Description

The CY7C136E-55JXC is a memory IC manufactured by Cypress Semiconductor Corp.

  • Manufacturer: Cypress Semiconductor Corp
  • Category: Integrated Circuits (ICs) - Memory - Memory
  • Application: Dual-Port, Asynchronous SRAM
  • Memory Size: 16Kbit
  • Access Time: 55ns
  • Voltage Range: 4.5V to 5.5V
  • Package: 52-LCC (J-Lead)
  • Mounting Type: Surface Mount
  • Product Status: Obsolete
