Same model may have multiple batches, images only for reference.

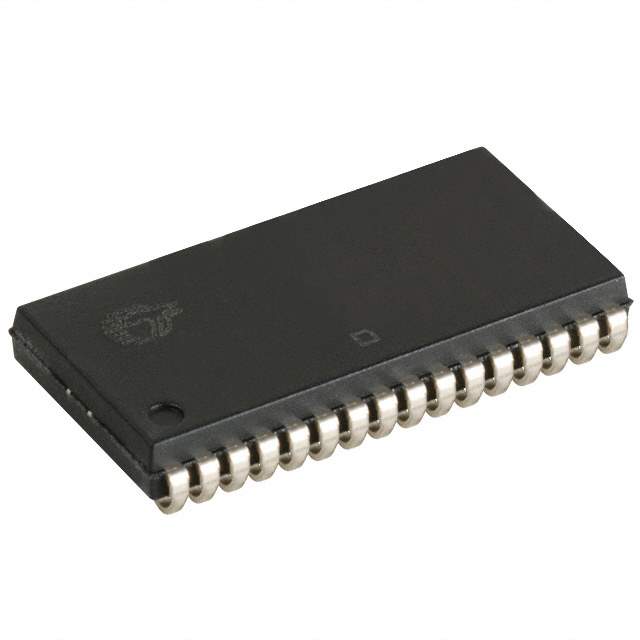

CY7C109B-12VC Real Image
Same model may have multiple batches, images only for reference.

CY7C109B-12VC

Part No CY7C109B-12VC
Manufacturer Cypress Semiconductor Corp
Catalog RAM
Description 128K x 8 Static RAM
Datasheet
CY7C109B-12VC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Packaging Tube
Part Status Obsolete(EOL)
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 1Mb (128K x 8)
Write Cycle Time - Word, Page 12ns
Access Time 12ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 32-BSOJ (0.400", 10.16mm Width)
Manufacturer Package 32-SOJ
Win Source Part Number 1164877-CY7C109B-12VC
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY7C109B
Introduction Date September 10, 1999
ECCN 3A991.b.2.b
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CY7C109B-12VC CAD Model

Description

The CY7C109B-12VC is a 1Mb (128K x 8) asynchronous SRAM memory IC that operates at an extended temperature range of 0°C to 70°C, manufactured by Cypress Semiconductor Corp.

  • Package: 32-BSOJ (0.400", 10.16mm Width)
  • Supply Voltage Range: 4.5V to 5.5V
  • ECCN: 3A991.b.2.b
  • Status: Obsolete
