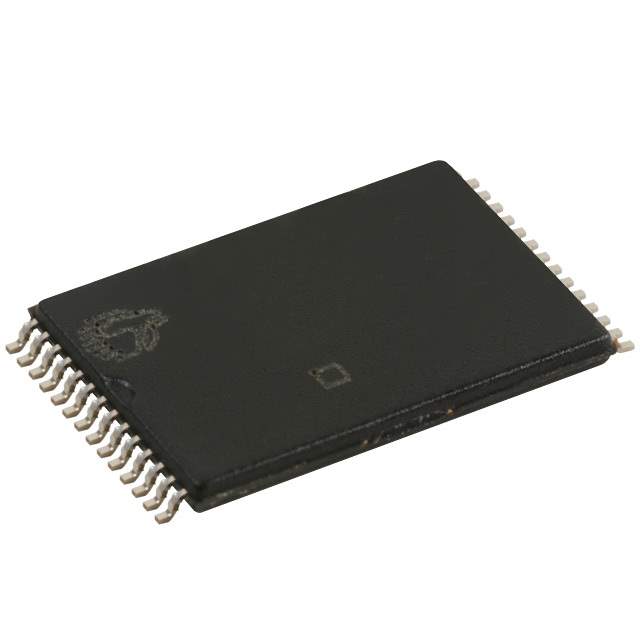

CY62256VNLL-70ZXI Real Image
Same model may have multiple batches, images only for reference.

CY62256VNLL-70ZXI

Part No CY62256VNLL-70ZXI
Manufacturer Cypress Semiconductor Corp
Catalog RAM
Description 256K (32K x 8) Static RAM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Series MoBL
Packaging Tray
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 256Kb (32K x 8)
Write Cycle Time - Word, Page 70ns
Access Time 70ns
Memory Interface Parallel
Operating Supply Voltage 2.7 V ~ 3.6 V
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 28-TSSOP (0.465", 11.80mm Width)
Manufacturer Package 28-TSOP I
Win Source Part Number 1164394-CY62256VNLL-70ZXI
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY62256VNLL
Introduction Date August 27, 2002
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CY62256VNLL-70ZXI CAD Model

Description

The CY62256VNLL-70ZXI electronic component is a 256Kb (32K x 8) SRAM - Asynchronous product manufactured by Cypress Semiconductor Corp.

  • Operating Temperature Range: -40°C ~ 85°C (TA)
  • Package: 28-TSSOP (0.465", 11.80mm Width)
  • Mounting: SMD
  • Technology: Volatile
  • Memory Interface: Parallel
  • Write Cycle Time - Word, Page: 70ns
  • Manufacturer Homepage: www.cypress.com
