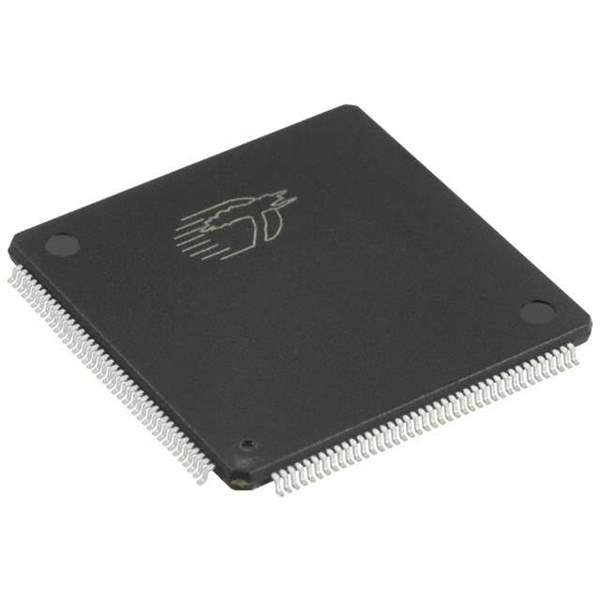

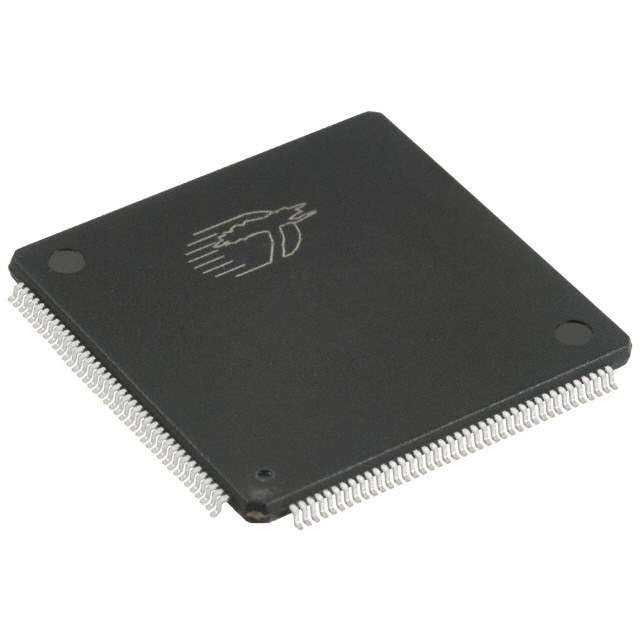

The CY37192P160-83AXI is a Complex Programmable Logic Device (CPLD) from Cypress Semiconductor's Programmable Logic Device (PLD) family. This CPLD offers a flexible and efficient solution for implementing custom logic functions in a wide variety of digital systems. It is designed for high-performance and low-power applications, providing a balance of speed, density, and flexibility.

Applications:

• Address Decoding
• Glue Logic
• State Machine Implementation
• Peripheral Control
• Data Path Control

Features:

• 192 Macrocells
• 160 I/O Pins
• High-Speed Performance
• In-System Programmability (ISP)
• Low Power Consumption

Benefits:

• Flexibility in implementing complex logic functions.
• Fast prototyping and design iterations.
• Reduced component count and board space.
• Easy integration with other digital components.
• Cost-effective solution for custom logic implementation.

Technical Specifications:

• Number of Macrocells: 192
• Number of I/O Pins: 160
• Maximum Operating Frequency: 83 MHz
• Supply Voltage: 3.3V
• Operating Temperature: -40°C to +85°C
• Package: 160-pin PQFP
• ISP: In-System Programmable
• Propagation Delay: 7.5 ns

The CY37192P160-83AXI CPLD provides a versatile platform for implementing custom logic designs with its high density, speed, and in-system programmability. This device is suitable for a wide range of applications requiring complex logic functions and high-performance capabilities.
