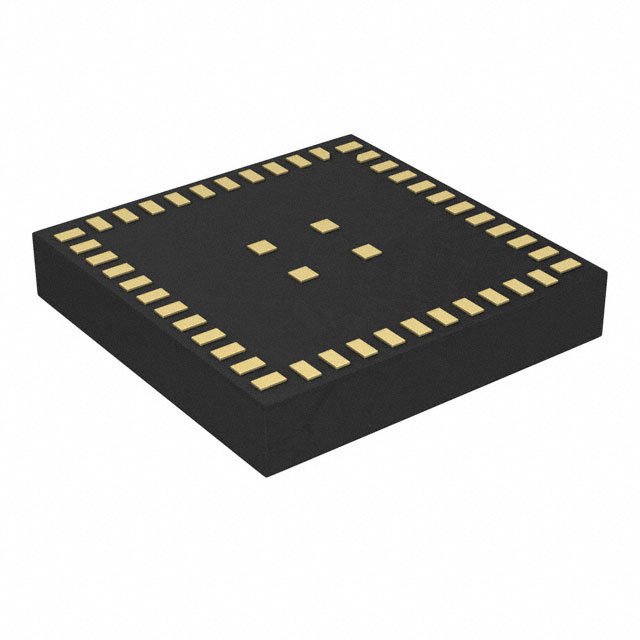

Same model may have multiple batches, images only for reference.
BCM20737S Cypress Semiconductor Corp
Same model may have multiple batches, images only for reference.

BCM20737S

Part No BCM20737S
Manufacturer Cypress Semiconductor Corp
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 32QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Cypress Semiconductor Corp
Packaging Tray
Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 1Mbps
Power - Output 4dBm
Sensitivity -94dBm
Memory Size 320kB ROM, 60kB RAM
Serial Interfaces I2C, SPI, UART
GPIO 14
Supply Voltage - Operating 3.8V
Current - Receiving 9.8mA
Current - Transmitting 9.1mA
Temperature Range - Operating -30°C to 85°C
Dimension 48-TFBGA
Win Source Part Number 1022556-BCM20737S
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BCM20737S CAD Model

Description

The BCM20737S is a TxRx + MCU type electronic component that operates @ a frequency of 2.4GHz from Cypress Semiconductor Corp.

  • Protocol: Bluetooth v4.0
  • Memory Size: 320kB ROM and 60kB RAM
  • Power Output: 4dBm
  • Sensitivity: -94dBm
  • Maximum Data Rate: 1Mbps
  • Current Consumption (Rx): 9.8mA
  • Current Consumption (Tx): 9.1mA
  • GPIOs: 14
  • Serial Interfaces: I2C, SPI, and UART
  • Category: RF/IF and RFID
  • Status: active
  • Operating Temperature Range: -30°C to 85°C
  • Dimension: 48-TFBGA
  • Supply Voltage: 3.8V
