Same model may have multiple batches, images only for reference.

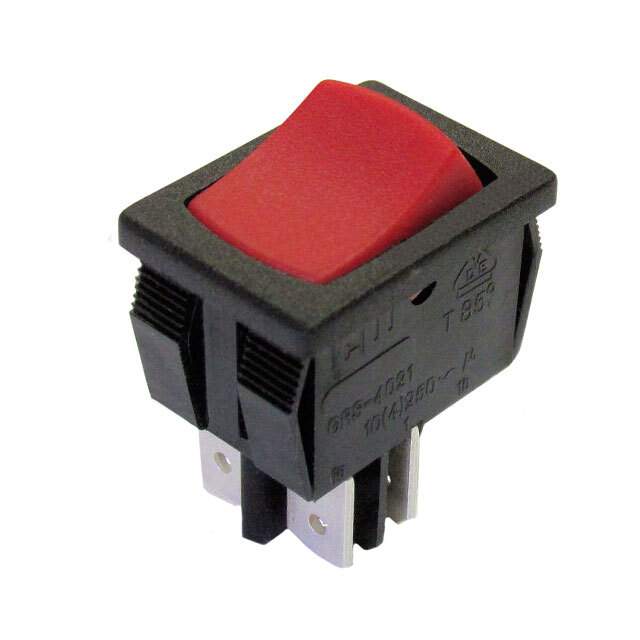

GRS-4021-0026 Real Image
Same model may have multiple batches, images only for reference.

GRS-4021-0026

Part No GRS-4021-0026
Manufacturer CW Industries
Catalog Rocker Switches
Description SWITCH ROCKER DPST 16A 125V / Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
Datasheet
GRS-4021-0026 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr CW Industries
Series 4000
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Red
Actuator Marking No Marking
Termination Style Quick Connect - 0.187" (4.7mm)
Features Terminal Barriers
Panel Cutout Dimensions Rectangular - 19.20mm x 12.90mm
Temperature Range - Operating -20°C ~ 105°C
Mechanical Life 25,000 Cycles
Electrical Life 25,000 Cycles
Base Product Number GRS-4021
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CWI515,GRS-4021-0026-ND
Standard Package 500
Win Source Part Number 1156663-GRS-4021-0026
Ultra Librarian 3D Model Ultra Librarian GRS-4021-0026 CAD Model

Description

The CW Industries 1156663-GRS-4021-0026 is a DPST rocker switch that is ideal for use in various electronic applications.

  • Voltage Rating: 125V AC
  • Current Rating: 16A AC
  • Mounting: panel-mounted
  • Panel Cutout: 19.20mm x 12.90mm
  • Actuator Type: concave
  • Actuator/Cap Color: red
  • Switch Function: on-off
  • Mechanical Life: 25,000 cycles
