Same model may have multiple batches, images only for reference.

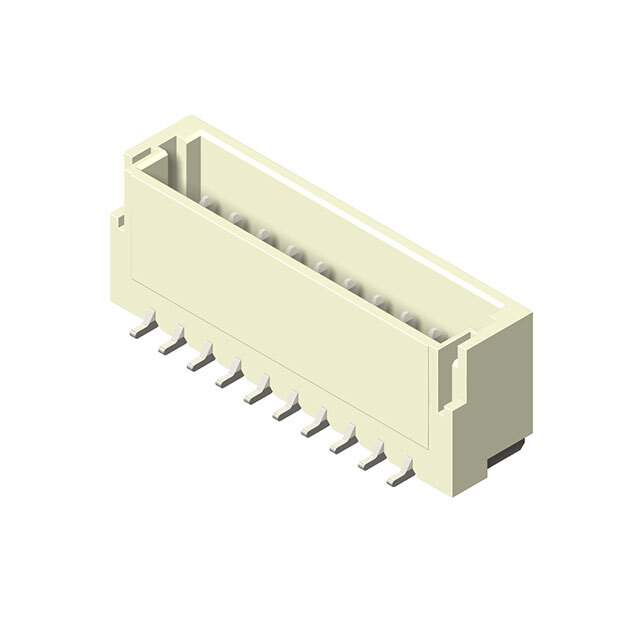

CI1102M1VR0-NH Real Image
Same model may have multiple batches, images only for reference.

CI1102M1VR0-NH

Part No CI1102M1VR0-NH
Manufacturer Cvilux USA
Catalog Rectangular Connectors
Description 2 POS 1.00MM(.039) SINGLE ROW ST / Connector Header Surface Mount 2 position 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Cvilux USA
Series CI11
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.069" (1.75mm)
Insulation Height 0.169" (4.30mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA6T) , Nylon 6T, Glass Filled, Halogen Free
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A (AC/DC)
Voltage Rating 50VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number CI1102M1
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338414-CI1102M1VR0-NH
Ultra Librarian 3D Model Ultra Librarian CI1102M1VR0-NH CAD Model

Description

The CI11 series header male pin connector is manufactured by Cvilux USA.

  • Win Source Part Number: 1338414-CI1102M1VR0-NH
  • Positions: 2
  • Loaded: All Positions
  • Features: Pick and Place, Solder Retention
  • Connector Type: Header
  • Contact Type: Male Pin
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Package: Tape & Reel
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50VAC
  • Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen-Free
  • Style: Board to Cable/Wire
  • Pitch - Mating: 0.039" (1.00mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 100.0µin (2.54µm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 100.0µin (2.54µm)
  • Insulation Color: Natural
  • Mounting Type: Surface Mount
  • Shrouding: Shrouded - 4 Wall
  • Contact Shape: Rectangular
  • Temperature Range - Operating: -25°C to 85°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 1A (AC/DC)
  • REACH Status: REACH Unaffected
