Same model may have multiple batches, images only for reference.

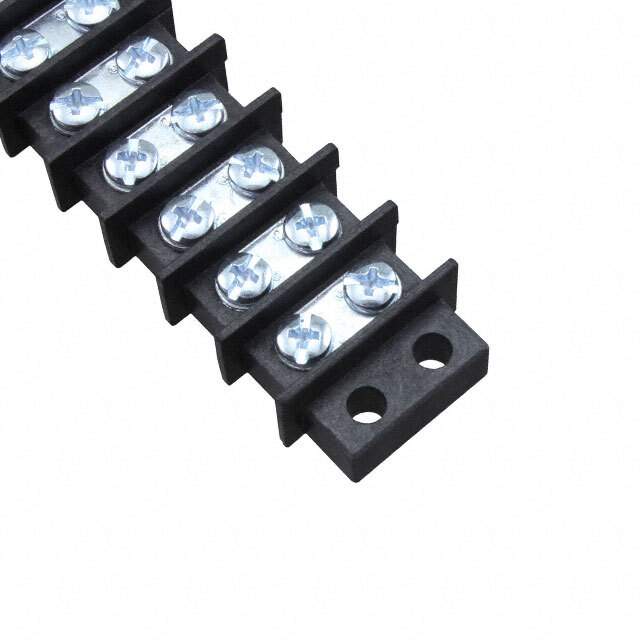

2022 Real Image
Same model may have multiple batches, images only for reference.

2022

Part No 2022
Manufacturer Curtis Industries
Catalog Terminal Blocks
Description CONN BARRIER STRP 22CIRC 0.438"
Datasheet
2022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Barrier Blocks
Mfr Curtis Industries
Series 2000
Package Bulk
Product Status Active
Terminal Block Type Barrier Block
Number of Circuits 22
Number of Wire Entries 44
Pitch 0.438" (11.12mm)
Number of Rows 2
Current Rating (Amps) 30A
Wire Gauge 10-22 AWG
Top Termination Screws
Bottom Termination Closed
Barrier Type 2 Wall (Dual)
Features Flange
Terminal Screw Material Steel
Mounting Type Chassis, Panel
Temperature Range - Operating 110°C
Material - Insulation Polyphenylene Oxide (PPO)
Material Flammability Rating UL94 V-0
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 854500-2022
Ultra Librarian 3D Model Ultra Librarian 2022 CAD Model

Description

The 854500-2022 is a terminal block barrier block from Curtis Industries.

  • Series: 2000
  • Design: Flange
  • Number of Rows: 2
  • Wire Gauge: 10 to 22 AWG
  • Number of Circuits: 22
  • Number of Wire Entries: 44
  • Insulation Material: Polyphenylene Oxide (PPO)
  • Flammability Rating: UL94 V-0
  • Current Rating: 30A
  • Operating Temperature: Up to 110°C
  • Top Termination: Screws
  • Bottom Termination: Closed
