Same model may have multiple batches, images only for reference.

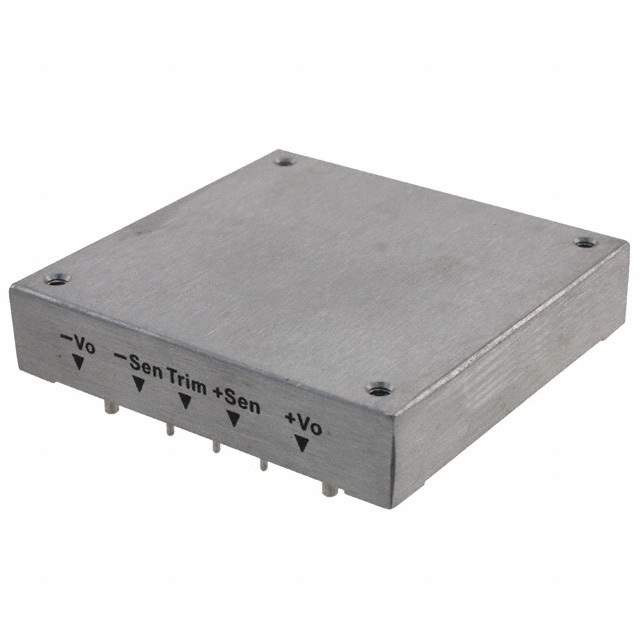

VHB100W-Q24-S24 Real Image
Same model may have multiple batches, images only for reference.

VHB100W-Q24-S24

Part No VHB100W-Q24-S24
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 100W
Datasheet
VHB100W-Q24-S24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 20 Weeks
Features Isolated Module DC DC Converter Output 24V - - 4.17A 9V - 36V Input
Manufacturer CUI Inc.
Series VHB100W (100W)
Package Box
Operating Temperature Range -40°C ~ 100°C
Mounting Through Hole
Package 9-DIP Module
Family Name VHB100W
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number VHB100WQ24S24, 102-1972, 2266-VHB100W-Q24-S24, 659-90840R
Quantity per package 48
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902548-VHB100W-Q24-S24
Ultra Librarian 3D Model Ultra Librarian VHB100W-Q24-S24 CAD Model

Description

The CUI Inc. VHB100WQ24S24 is an isolated module DC DC converter that has a 24V output and a 9V-36V input.

  • Output Voltage: 24V
  • Input Voltage: 9V-36V
  • Package: 9-DIP Module
  • Package Type: Box
  • Series: VHB100W
  • Category: Power Supplies - Board Mount
  • Supply and Demand Status: Balanced
  • Package Quantity: 48
  • Estimated Production Lead Time: 20 weeks
  • HTSUS: 8504.40.9580
  • Other Part Numbers: 102-1972, 2266-VHB100W-Q24-S24, 659-90840R
