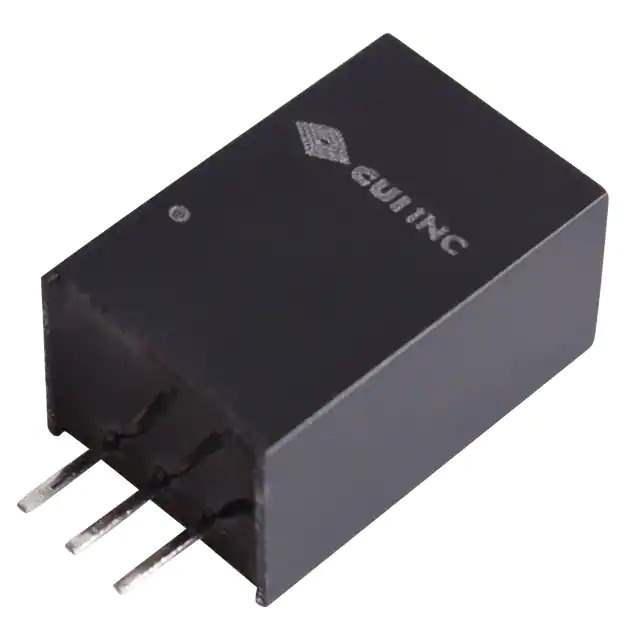

Same model may have multiple batches, images only for reference.

V7805-2000

Name: V7805-2000
Brand: CUI Inc.
SKU: 847793
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	V7805-2000
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Linear Regulator Replacement DC DC Converter 1 Output 5V 2A 7V - 18V Input
Datasheet	V7805-2000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	V78-2000
Package	Tube
Product Status	Active
Type	Linear Regulator Replacement
Number of Outputs	1
Voltage - Input (Min)	7V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Applications	ITE (Commercial)
Features	OTP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	3-SIP Module
Size / Dimension	0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
Approval Agency	CB Scheme, EN, IEC
Standard Number	55024; 55032 Class A; 60950-1
Base Product Number	V7805
Standard Package	44 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847793-V7805-2000
Ultra Librarian 3D Model	Ultra Librarian V7805-2000 CAD Model

Alternative Products

Description

The 847793-V7805-2000 is a DC-DC converter from CUI Inc. It is a linear regulator replacement.

Power Rating: 10W
Output Voltage: 5V
Maximum Output Current: 2A
Input Voltage: 7V to 18V
Protection Features: Over-Temperature Protection (OTP), Short-Circuit Protection (SCP)
Mounting Type: Through Hole
Package: 3-SIP Module
Size: 0.45" L x 0.35" W x 0.69" H
Efficiency: 91%
Operating Temperature: -40°C to 85°C
Standards Compliance: CB Scheme, EN, IEC
Application: Commercial ITE
