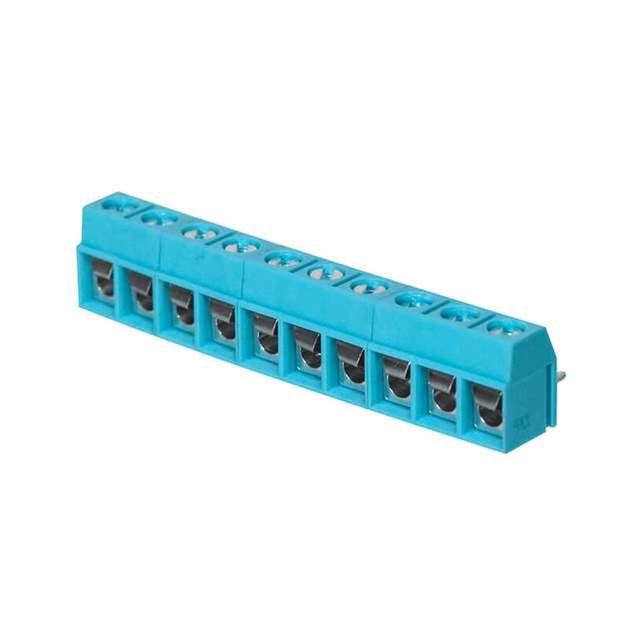

Same model may have multiple batches, images only for reference.

TB002V-500-10BE

Name: TB002V-500-10BE
Brand: CUI Inc.
SKU: 1165932
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TB002V-500-10BE
Manufacturer	CUI Inc.
Catalog	Terminal Blocks
Description	TERMINAL BLOCK, SCREW TYPE, 5.00 / 10 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
Datasheet	TB002V-500-10BE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks - Wire to Board
Mfr	CUI Devices
Series	TB002V-500
Package	Box
Number of Levels	1
Positions Per Level	10
Pitch	0.197" (5.00mm)
Mating Orientation	Vertical with Board
Current	15 A
Voltage	300 V
Wire Gauge	12-22 AWG
Mounting Type	Through Hole
Wire Termination	Screw - Leaf Spring, Wire Guard
Features	Interlocking (Side)
Color	Blue
Temperature Range - Operating	-40°C ~ 105°C
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material - Plating	Copper Alloy - Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Torque - Screw	0.4 Nm (3.5 Lb-In)
Screw Thread	M2.5
Base Product Number	TB002
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	102-6160
Standard Package	840
Win Source Part Number	1165932-TB002V-500-10BE
Ultra Librarian 3D Model	Ultra Librarian TB002V-500-10BE CAD Model

Description

The TB002V-500-10BE is a blue-colored terminal block wire-to-board connector designed and manufactured by CUI Devices.

Housing Material: Polybutylene Terephthalate (PBT)
Contact Material: Copper Alloy, Tin-Plated
Features: Interlocking on Side
Wire Termination: Screw-Leaf Spring and Wire Guard
Wire Gauge: 12-22 AWG
Current Rating: 15 A
Voltage Rating: 300 V
Pitch: 0.197 inches (5.00mm)
Mounting Type: Through-Hole
Temperature Range: -40°C to 105°C
Package: Box
Screw Thread: M2.5
Torque: 0.4 Nm (3.5 Lb-In)
Standard Package: 840
