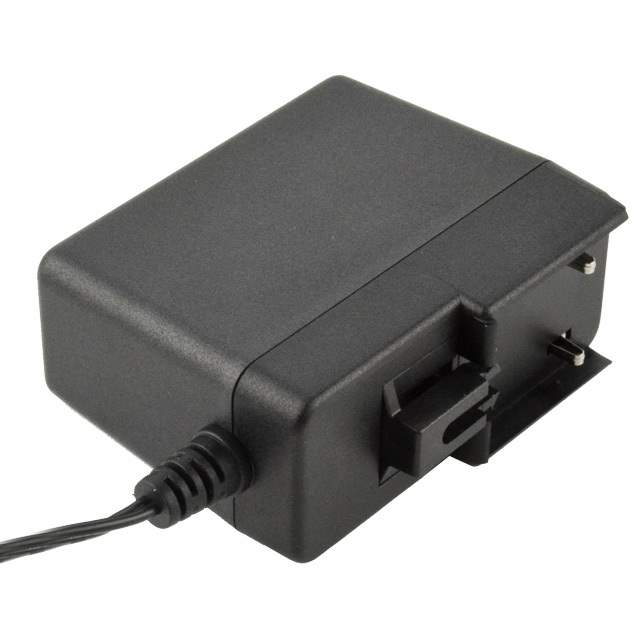

SMI36-5-K-P6 Real Image
Same model may have multiple batches, images only for reference.

SMI36-5-K-P6

Part No SMI36-5-K-P6
Manufacturer CUI Inc.
Catalog AC DC Desktop, Wall Adapters
Description AC/DC WALL MOUNT ADAPTER 5V 25W / 5V 25 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
Datasheet
SMI36-5-K-P6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Desktop, Wall Adapters
Mfr CUI Inc.
Series SMI36 (36W)
Package Box
Region Utilized International
Form Wall Mount (Class II)
Input Type Multi-Blade (Sold Separately)
Voltage - Input 90 ~ 264 VAC
Voltage - Output 5V
Current - Output (Max) 5A
Power (Watts) 25 W
No Load Power Consumption 100mW (Max)
Polarization Positive Center
Applications ITE (Commercial)
Efficiency Level VI, CoC Tier 2
Temperature Range - Operating 0°C ~ 40°C
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Cord Length 39.4" (1.00m)
Input Connector Multi-Blade
Dimension 3.10" L x 1.34" W x 2.60" H (78.5mm x 34.0mm x 66.0mm)
Approval Agency CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL
Standard Number C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
Weight 0.35 lb (160 g)
Base Product Number SMI36
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
Other Names SMI36-5-K-P6-ND,102-4947
Standard Package 100
Win Source Part Number 1093834-SMI36-5-K-P6
Ultra Librarian 3D Model Ultra Librarian SMI36-5-K-P6 CAD Model

Description

The SMI36-5-K-P6 is a 25 W AC DC desktop, wall adapter in a box package.

  • Manufacturer: CUI Inc.
  • Output Voltage: 5V
  • Maximum Output Current: 5A
  • No Load Power Consumption: 100mW
  • Application: ITE (commercial)
  • Efficiency: Level VI, CoC Tier 2
