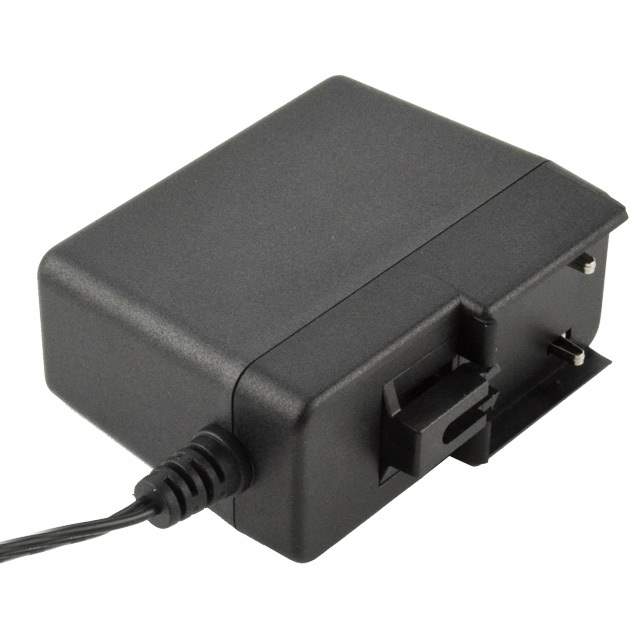

SMI36-5-K-P5

Name: SMI36-5-K-P5
Brand: CUI Inc.
SKU: 1146467
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMI36-5-K-P5
Manufacturer	CUI Inc.
Catalog	AC DC Desktop, Wall Adapters
Description	AC/DC WALL MOUNT ADAPTER 5V 25W / 5V 25 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
Datasheet	SMI36-5-K-P5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board)>AC DC Desktop, Wall Adapters
Mfr	CUI Inc.
Series	SMI36 (36W)
Package	Box
Region Utilized	International
Form	Wall Mount (Class II)
Input Type	Multi-Blade (Sold Separately)
Voltage - Input	90 ~ 264 VAC
Voltage - Output	5V
Current - Output (Max)	5A
Power (Watts)	25 W
No Load Power Consumption	100mW (Max)
Polarization	Positive Center
Applications	ITE (Commercial)
Efficiency	Level VI, CoC Tier 2
Temperature Range - Operating	0°C ~ 40°C
Output Connector	Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Cord Length	39.4" (1.00m)
Input Connector	Multi-Blade
Dimension	3.10" L x 1.34" W x 2.60" H (78.5mm x 34.0mm x 66.0mm)
Approval Agency	CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL
Standard Number	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
Weight	0.35 lb (160 g)
Base Product Number	SMI36
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9510
Other Names	SMI36-5-K-P5-ND,102-4946
Standard Package	100
Win Source Part Number	1146467-SMI36-5-K-P5
Ultra Librarian 3D Model	Ultra Librarian SMI36-5-K-P5 CAD Model

Alternative Products

Description

The SMI36-5-K-P5 is a high-quality power supply from CUI Inc.

Power: 36W
Type: AC/DC Desktop Adapter
Application: ITE (Commercial)
Voltage Output: 5V
Voltage Input: 90-264VAC
Efficiency: Level VI, CoC Tier 2
No-Load Power Consumption: 100mW (Max)
Polarization: Positive Center
Current Output: 5A (Max)
Form Factor: Wall Mount
Cord Length: 39.4 inches
Dimensions: 3.10 inches L x 1.34 inches W x 2.60 inches H (78.5mm x 34.0mm x 66.0mm)
Approvals: CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, and UL
Standards: C22.2 No. 60950-1, 55024, 55032 Class B, 60950-1, 61000-3-2, 61000-3-3, and 62368-1
