Same model may have multiple batches, images only for reference.

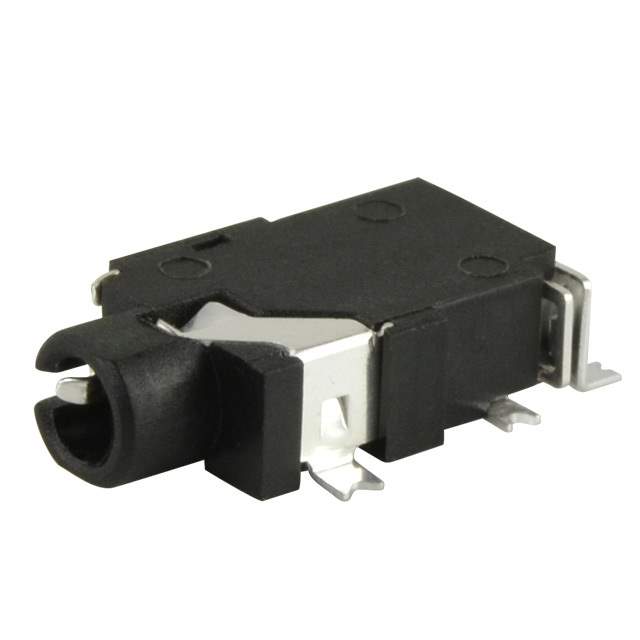

SJ2-2523D-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

SJ2-2523D-SMT-TR

Part No SJ2-2523D-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description AUDIO JACK, 2.5 MM, RT, 3 CONDUC / 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
SJ2-2523D-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Audio Connectors
Mfr CUI Devices
Series SJ2
Package Tape & Reel
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter 0.102" (2.60mm)
Number of Positions/Contacts 3 Conductors, 5 Contacts
Internal Switch(s) Two Switches
Mounting Type Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.433" (11.00mm)
Contact Material - Plating Silver
Body Color Black
Housing Material Polyamide (PA10T), Nylon 10T
Contact Material Brass; Copper Alloy
Base Product Number SJ2-25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Names CP-SJ2-2523D-SMT-DKR,CP-SJ2-2523D-SMT-CT,CP-SJ2-2523D-SMT-TR
Standard Package 1,200
Win Source Part Number 1093215-SJ2-2523D-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ2-2523D-SMT-TR CAD Model

Description

The SJ2-2523D-SMT-TR is a phone jack connector with 3 conductors and 5 contacts.

  • Conductors: 3
  • Contacts: 5
  • Mounting Type: Surface Mount, Right Angle
  • Package: Tape and Reel
  • Voltage Rating: 12VDC
  • Current Rating: 1A
  • Temperature Range: -25°C to 85°C
  • Shielding: Unshielded
  • Contact Material: Brass and Copper Alloy
  • Housing Material: Polyamide (PA10T), Nylon 10T
  • Popularity: 67%
  • REACH: Unaffected
  • Also Known As: CP-SJ2-2523D-SMT-DKR, CP-SJ2-2523D-SMT-CT, CP-SJ2-2523D-SMT-TR
