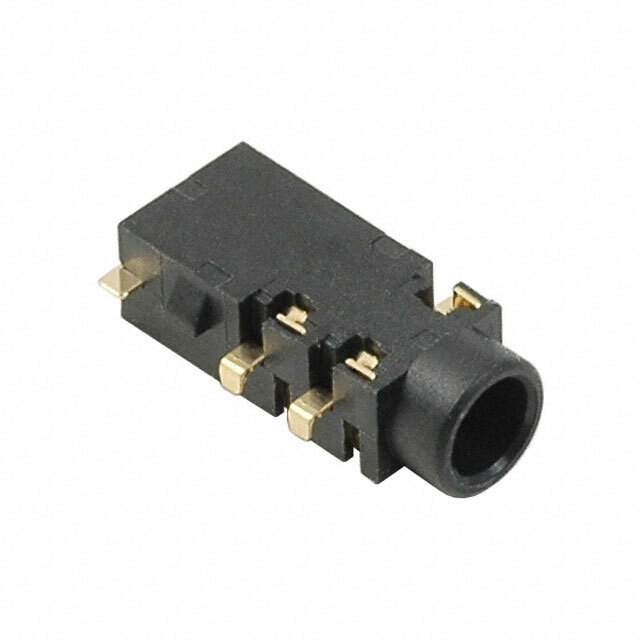

SJ-3501-SMT-TR

Part No SJ-3501-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK STEREO 3.5MM SMD R/A / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
SJ-3501-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Audio Connectors
Mfr CUI Devices
Series SJ
Package Tape & Reel
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 3 Conductors, 5 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Board Cutout, Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Gold
Body Color Black
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material Copper Alloy
Base Product Number SJ-35
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SJ3501SMTTR,045-0001R,CP-3501SJTR,CP-3501SJCT,SJ-3501-SMT,CP-3501SJDKR
Standard Package 1,000
Win Source Part Number 1093217-SJ-3501-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ-3501-SMT-TR CAD Model

Description

The CUI Devices SJ-3501-SMT-TR is a 3.5mm phone jack connector designed for use in audio products.

  • Size: 3.5mm
  • Conductors: 3
  • Contacts: 5
  • Mating Diameter: 3.50mm
  • Type: Female Phone Jack
  • Termination: Solder
  • Contact Material: Copper Alloy with Gold Plating
  • Housing Material: Polyamide (PA6T) and Nylon 6T
  • Shielding: Shielded
  • Operating Temperature: -25°C to 85°C
  • Current Rating: 1A
  • Voltage Rating: 12VDC
  • Mounting Options: Surface-Mounted, Right-Angled, Board Cutout Mounted
