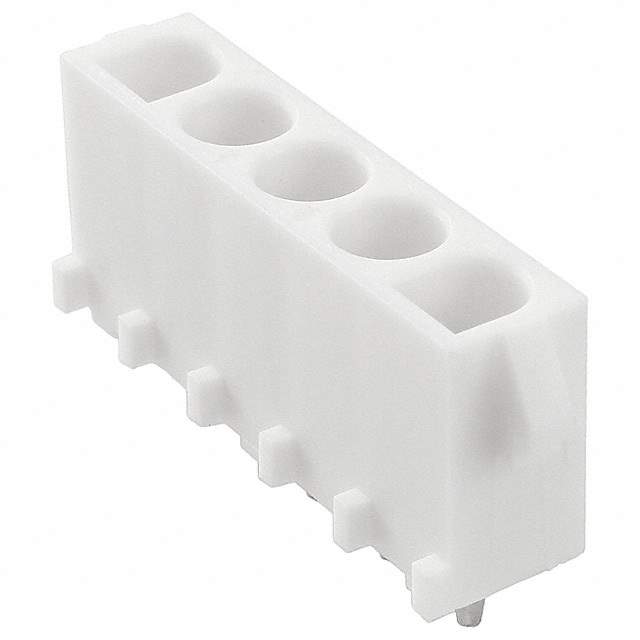

640901-1 Real Image
Same model may have multiple batches, images only for reference.

640901-1

Part No 640901-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN HDR 5POS 0.25 TIN PCB  /  5 Position Header Connector 0.250" (6.35mm) Through Hole Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 5
Number of Positions Loaded All
Pitch - Mating 0.250" (6.35mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Insulation Color Natural
Insulation Height 0.580" (14.73mm)
Contact Length - Post 0.155" (3.94mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Contact Material Phosphor Bronze
Base Product Number 640901
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 6409011,A25258,2266-640901-1,640901-1-ND,-640901-1-SI
Standard Package 100
Win Source Part Number 1182364-640901-1
Ultra Librarian 3D Model Ultra Librarian 640901-1 CAD Model

Description

The 1182364-640901-1 is a rectangular connector header manufactured by TE Connectivity AMP Connectors.

  • Win Source Part Number: 1182364-640901-1
  • Base Product Number: 640901
  • Positions: Five
  • Package: Bulk
  • Pitch-Mating: 0.250" (6.35mm)
  • Contact Finish-Mating: Tin
  • Temperature Range: -40°C to 105°C
  • Application: Board to Cable/Wire
