Same model may have multiple batches, images only for reference.

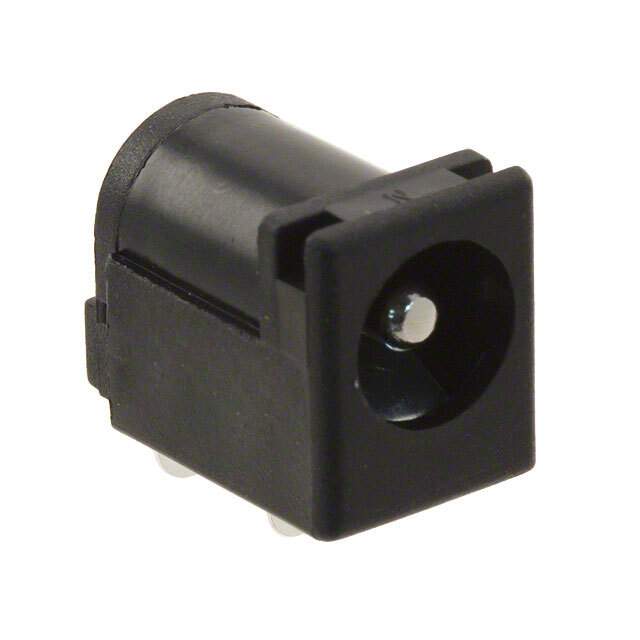

PJ-002BH Real Image
Same model may have multiple batches, images only for reference.

PJ-002BH

Part No PJ-002BH
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2.5X5.5MM SOLDER
Datasheet
PJ-002BH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer CUI Inc.
Packaging Bulk
Status Active
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Through Hole, Right Angle
Termination Solder Eyelet(s)
Features Board Guide, Solder Retention
Voltage Rating 24VDC
Current Rating 5A
Mating Length/Depth 0.350" (8.90mm)
Contact Material - Plating Silver
Temperature Range - Operating -25°C to 85°C
Housing Material Polybutylene Terephthalate (PBT)
Body Color Black
Material Flammability Rating UL94 V-0
Win Source Part Number 1089298-PJ-002BH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PJ-002BH CAD Model

Description

CUI Inc. PJ-002BH is a male jack connector that has 2 conductors and 3 contacts.

  • Conductors: 2
  • Contacts: 3
  • Voltage Rating: 24VDC
  • Current Rating: 5A
  • Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Mounting Feature: Through-hole, Right-angle
  • Mating Length/Depth: 0.350 inches
  • Contact Material Plating: Silver
  • Industry-Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
  • Popularity: Medium
  • Supply and Demand Status: Balanced
