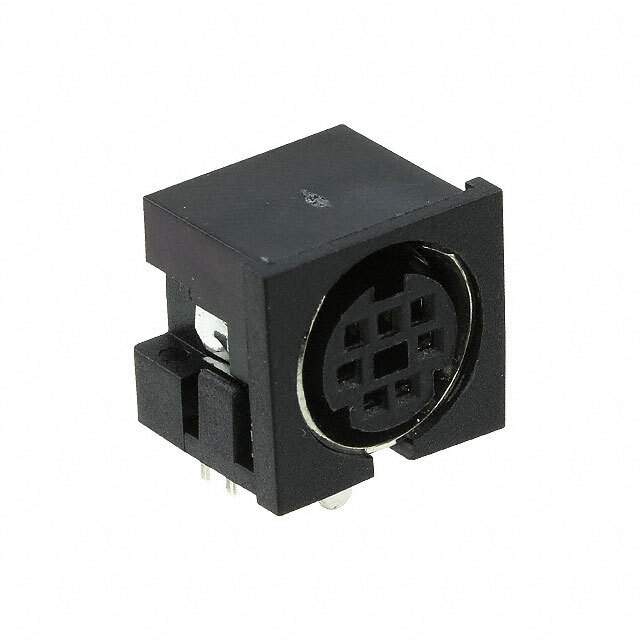

MD-70S Real Image
Same model may have multiple batches, images only for reference.

MD-70S

Part No MD-70S
Manufacturer CUI Inc.
Catalog Circular Connectors
Description CONN RCPT FMALE MINI DIN 7P SLDR  /  7 Position Circular Connector Receptacle, Female Sockets Solder
Datasheet
MD-70S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr CUI Devices
Series MD-S
Package Tray
Connector Type Receptacle, Female Sockets
Number of Positions 7
Shell Size - Insert Mini DIN
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Contact Finish - Mating Silver
Color Black
Material Flammability Rating UL94 V-0
Features Board Lock, Ground
Shielding Unshielded
Current Rating (Amps) 1A, 2A
Voltage Rating 100VAC, 12VDC
Temperature Range - Operating -40°C ~ 85°C
Contact Material Phosphor Bronze
Base Product Number MD-70
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Names 045-0037R,CP-2470-NDR,Q6428376P,CP-2470,MD70S
Standard Package 1,000
Win Source Part Number 1078371-MD-70S
Ultra Librarian 3D Model Ultra Librarian MD-70S CAD Model

Description

The MD-S series circular connector is a receptacle with female sockets, designed for through-hole and right-angle mounting. It has 7 positions and features board lock and ground.

  • Positions: 7
  • Mounting: Through-Hole, Right-Angle
  • Features: Board Lock, Ground
  • Shell Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Contact Material: Phosphor Bronze
  • Mating Contact Finish: Silver
  • Voltage Rating: 100VAC, 12VDC
  • Operating Temperature: -40°C to 85°C
  • Shielding: Unshielded
  • Fastening Type: Push-Pull
  • Package: Tray
  • Standard Package: 1,000
  • Alternative Part: MD-70S
