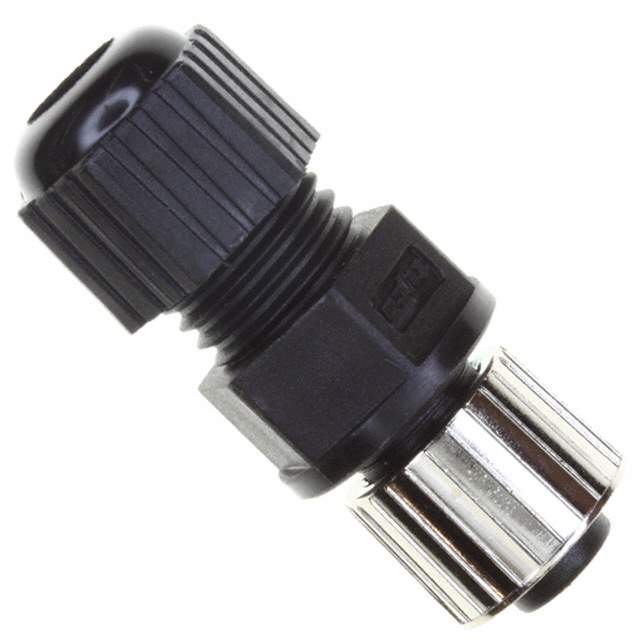

1838274-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr TE Connectivity AMP Connectors
Series M12
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 4
Shell Size - Insert M12-4
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Plastic
Shell Material Polyamide (PA), Nylon, Glass Filled
Contact Finish - Mating Gold
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 5A
Voltage Rating 250VAC/DC
Temperature Range - Operating -25°C ~ 90°C
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Applications Automotive, Industrial
Base Product Number 1838274
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names -1838274-2-SI,2266-1838274-2,18382742,A97641
Standard Package 50
Win Source Part Number 1230720-1838274-2
Ultra Librarian 3D Model Ultra Librarian 1838274-2 CAD Model

Description

The TE Connectivity AMP Connectors 1838274-2 is a circular connector that is used in a wide range of applications.

  • Connector Type: Female Socket Receptacle
  • Positions: 4
  • Package: Bulk
  • Mounting Type: Free Hanging (In-Line)
  • Shell Material: Polyamide (PA), Nylon, Glass-Filled
  • Ingress Protection: IP67 - Dust Tight, Waterproof
